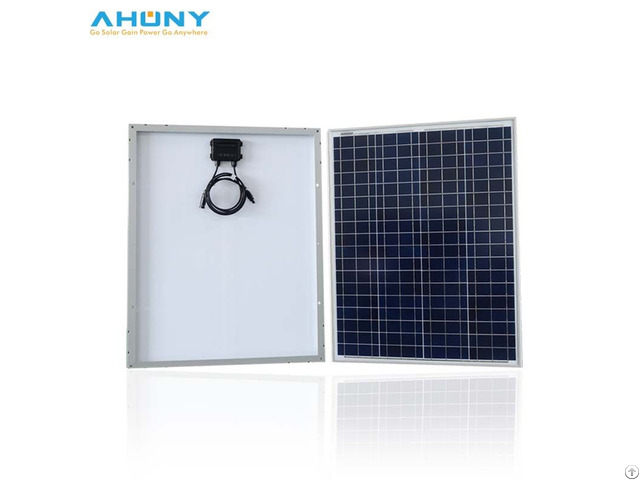

Small Poly Solar Panel 50w A Grade Cell For Electric Fence Industrial Application Use - China

Model No.

eRigid P50W

Feature for electric fence small solar panel poly solar panel 50w a grade cell for electric fence industrial application use

Product Name Rigid Polycrystalline solar panel

Maximum Power[Wp] 50

Solar Cell Poly A grade solar cell

Cell size[mm] 156*49

Cell Array[Pcs] 4*9

Cell Efficiency 18.24%

Size[mm] 650*510*25

Max Power Voltage Vmp[V] 19.08

Max Power Current Imp[A] 2.62

Open Circuit Voltage Voc[V] 22.51

Short Circuit Current Isc[A] 2.83

Net.

Weight[kg] 4.00

Power tolerance[%] ±3%

NOCT[℃] 45±2

Operating Temperature[℃] -40/+85

Temperature Coefficient Pmax[%/℃] -0.41

Temperature Coefficient Voc[[%/℃] -0.32

Temperature Coefficient Isc[[%/℃] 0.04

Maximum System Voltage[V] 1000 V

Certification CE ROHS

Surface/Backsheet Glass+Aluminum/white

Jbox, Cables with Jbox IP65, 0.9m+MC4

Diode yes, 1-3pcs bypass diode

Connection MC4

Standard Test Conditions STC: 1000W/m², AM 1.5 and cell temp 25°C
