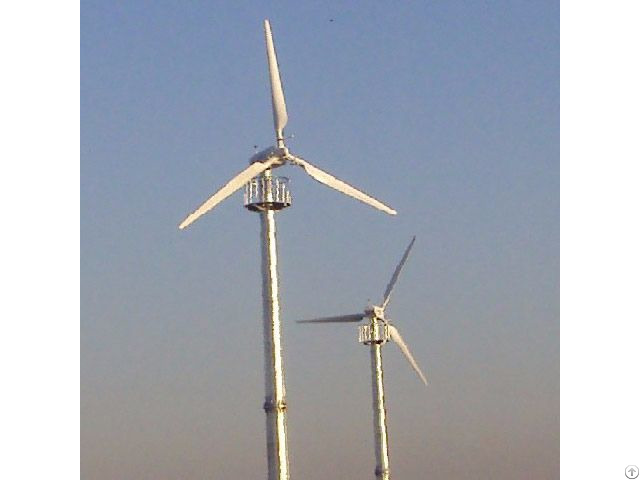

Swt 20kw Variable Pitch Wind Turbine Generator - China

price: 12000.00 Dollar US$

Swt 20kw Variable Pitch Wind Turbine Generator

Products Photos Catalog Swt 20kw Variable Photos Catalog

Rotor diameter:

12.35m

Blades quantity:

3pcs

Direction:

always downwind

Blades material:

Carbon fiber reinforced plastic

Rated output Power:

20KW

Power supplied to Grid 24KW [in 5seconds]

working voltage:

DC360V/500V, AC220V/380V

Annual average energy production:

50MWH (in rate 5m/s wind speed)

working wind speed:

3-35m/s

Initial wind speed:

2.0m/s

Nominal wind speed:

9.0m/s(30.3mph)

Storm-stand:

up to 55m/s

Max rotate speed:

120r/min

Wind turbine type:

Three-phase, PMG Alternator

Working temperature:

from -40 to +60 C

Blade Pitch Control

Variable Pitch

Over-speed Protection

Aerodynamic brake + Electromechanical disc brake Speed Regulate and Shut Down Methods Auto-Yawing, Positive Pitch and Electric Magnet Switch.

Gearbox:

None, Direct Drive


Company Contact:


  • Phone: +8657768206018

  • Address: 2/22 ChaofaTawan TokRoad,Moo5, wenzhou , zhejiang , China

  • Email: Email


Published date: August 4, 2018 - Modified date: August 4, 2018

  • Business Description: Senwei Energy is one of the leading manufacturers of small wind turbines in China.

    We produce residential wind turbine generator 1Kw-50kw, different size PMG, design wind-solar hybrid system for home or plants using, and supply the best solar panel from 100w-325w[poly/mono] as well as grid tied inverter for the world market.
