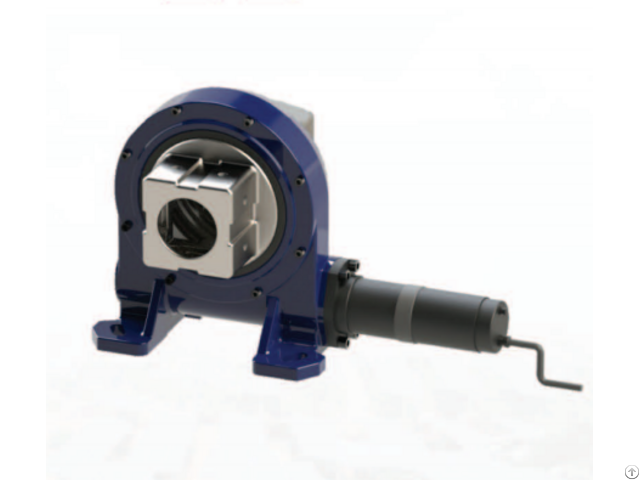

Zenithund Manufacturer Sv08 Worm Drive Slew Ring For Solar Tracker Unit - China
price: 300.00 Dollar US$
SV08
Rated output speed: 0.025rmp
Rated output torque: 7.32kN.
m
Ratio of worm gear: 65: 1
Holding torque: 55 kN.
m
Tracking precision: ≤0.2°
Axial dynamic load: 35kN
Radial Dynamic Load: 71kN
Axial Static Load: 68kN
Radial Static Load: 135kN
Tilting Moment Torque: 34.5kNM
IP Class: IP65
Temperature: -30～+80℃
Company Contact:
- Phone: 18837977196
- Address: 58# Changjiang Road, CHAGNZHOU , JIANGSU , China
- Email:
Published date: May 17, 2023
- Business Description: Zenithund is a one-stop rotary device manufacturer integrating R&D, customization and production.
The main slewing bearing can realize the supply of all categories, and the slewing drive covers SH, SS, WE, WEA, PH (precision), SV six series and can be customized.
A team with fifteen years of industry experience; CMM testing room; performance laboratory; physical and chemical laboratory and advanced production equipment.
Obtained ISO9001 certification; CE certification; a number of patents, declared a national high-tech enterprise.
Products are widely used in solar tracking systems, medical equipment, construction machinery, forklift attachments, industrial robots and other fields.
The company is committed to providing reliable cost-effective products to solve industry costs and improve industry efficiency.
The products are widely sold at home and abroad with a certain industry status and customer recognition.
