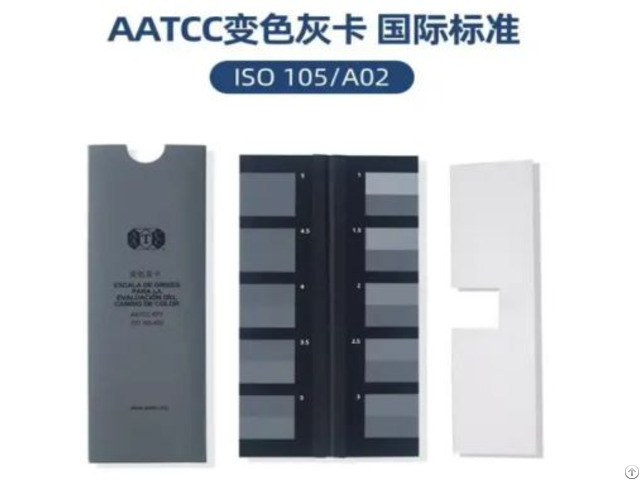

Aatcc Gray Scale For Color Change - China

Applicable Standards

The AATCC Gray Scale aligns with international colorfastness evaluation protocols, including: AATCC Evaluation Procedure 1 (Grey Scale for Stain and Color Change)

ISO 105-A02 (Grey Scale for Assessing Change in Color)

JIS L 0801 (Japanese Industrial Standard for Gray Scale Assessment)

GB/T 250 (China’s National Standard for Gray Scale for Color Change)

These standards harmonize grading criteria, enabling cross-border trade and regulatory compliance.

Working Principle

The Gray Scale functions as a visual benchmarking tool: Sample Preparation: Test specimens (e.g., dyed fabrics) are exposed to controlled conditions (e.g., xenon arc light, laundering cycles).

Comparison: The faded specimen is placed adjacent to the Gray Scale chips under standardized lighting (e.g., D65 illuminant, 6500K).

Rating: Users assign a grade based on the closest match:

1 = severe color change (e.g., visible fading or staining)

5 = no perceptible difference

Half-steps (e.g., 4-5) allow nuanced evaluation for borderline cases.

Test Principle & Applications

The Gray Scale is used in controlled laboratory environments to: Lightfastness Testing: Assess dye durability after accelerated aging (e.g., AATCC 16E, ISO 105-B02).

Wash Fastness: Evaluate color retention and cross-staining after laundering (AATCC 61, ISO 105-C06).

Perspiration/Rub Fastness: Measure color stability under simulated wear (AATCC 8, 15).

Key Applications: Textile & Apparel: Quality control for fashion brands and dyehouses.

Automotive/Upholstery: Ensuring color consistency in vehicle interiors.

Home Furnishings: Verifying fade resistance in carpets, curtains, and bedding.

The AATCC Gray Scale for Color Change is a cornerstone of colorfastness testing, offering a reliable, standardized, and user-friendly solution for industries demanding precision in product performance and durability.

Main Parameters

Parameter Specification

Scale Type 5-step numerical rating (1–5) with half-step increments (e.g., 4-5)

Dimensions 140 × 50 mm (standard card size)

Material Laminated paper with fade-resistant inks, sealed in protective sleeves

Color Pairs 5 pairs of gray chips (original vs.

faded) for visual comparison

Lightfastness Inks meet ISO 105-B02 standards for resistance to light exposure

Precision Tolerance ≤ ±0.5 grade for repeatable grading
