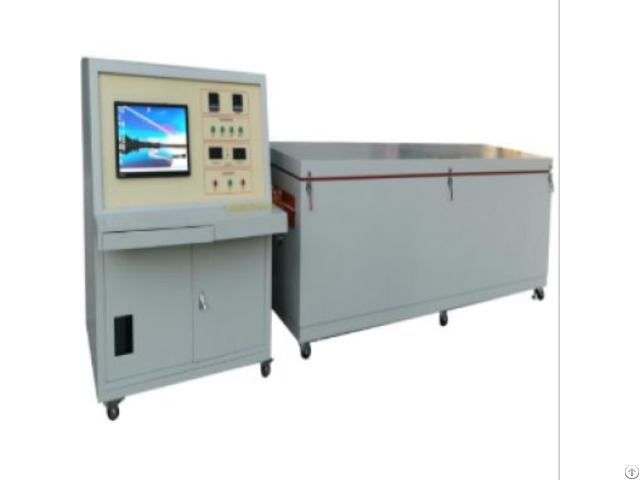

Ac Dc Current Carrying Temperature Rise And Voltage Drop Test System For Automotive Wires Qinsun - China

Application Scope: 1 - Record the temperature change of conductors in connectors under a certain current.

2 - Record the magnitude of the current passing through conductors in connectors at the set conductor temperature.

3 - Record the changes in voltage drop.

4 - Have a cyclic testing function.

Test Standards:

Test requirements such as JASO D609: 2001, QC/T29106, QC/T 1067.1, QC/T417.1, TICW15, etc.

Main Parameters: Parameter Description

Input voltage AC380V ±10%, 50Hz

Types of load power supplies DC: Switching power supply; AC: AC constant-current source

Operating current AC: 1000A, Open-circuit voltage: Maximum 10V; DC: 10–1000A, Open-circuit voltage: Maximum output 10V

Current output mode Set via computer

Ammeter accuracy ±1% + 3 digits

DC voltage drop ranges Range 1: 0.01mV – 199.99mV; Range 2: 0.1mV – 1999.9mV

Timing range 0 – 9999.99H/M/S (Automatic current cutoff upon timer completion)

Temperature meters Standard 8-channel test thermometers; real-time display/record of T1C, T2C, T3C, T1S, and ambient temperatures (Thermocouple type: T-type 30AWG)

Thermal control Temperature regulation and monitoring for constant-temperature chamber
