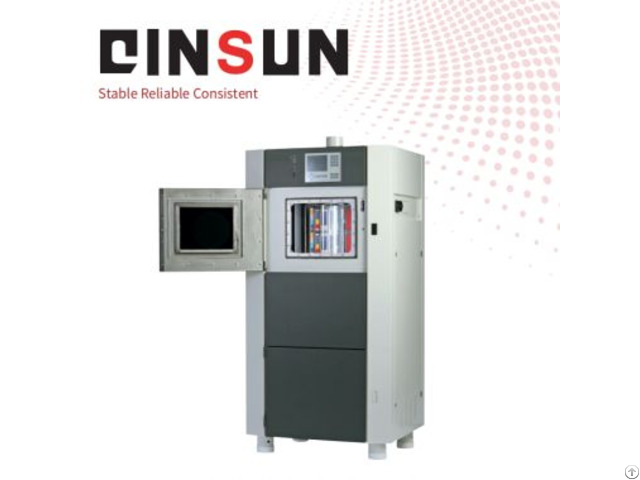

Air Cooled Xenon Lamp Aging Tester - China

Standard Compliance

AATCC TM16-2004 Colorfastness to Light AATCC TM16.3 Colorfastness to Light ASTM D2565 Standard Practice for Xenon Arc Exposure of Plastics Intended for Outdoor Applications ASTM D7869 Standard Practice for Xenon Arc Exposure Test with Enhanced Light and Water Exposure for Transportation Coatings ASTM G151 Standard Practice for Exposing Nonmetallic Materials in Accelerated Test Devices that Use Laboratory Light Sources ASTM G155 Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials GB/T 8427 Textiles - Tests for color fastness - Color fastness to artificial light: Xenon arc fading lamp test GB/T 8814 Unplasticized polyvinyl chloride (PVC-U) profiles for the frames of doors and windows GB/T 16259 Test method for accelerated weathering of building materials IEC 60068-2-5 Environmental testing - Part 2-5: Tests - Test S: Simulated solar radiation at ground level and guidance for solar radiation testing and weathering ISO 105-B02 Textiles - Tests for colour fastness - Part B02: Colour fastness to artificial light: Xenon arc fading lamp test ISO 105-B04 Textiles - Tests for colour fastness - Part B04: Colour fastness to weathering: Xenon arc test ISO 105-B06 Textiles - Tests for colour fastness - Part B06: Colour fastness and ageing to artificial light at high temperatures: Xenon arc fading lamp test ISO 105-B10 Textiles - Tests for colour fastness - Part B10: Artificial weathering - Exposure to filtered xenon-arc radiation ISO 11341 Paints and Varnishes - Artificial Weathering and Exposure to Artificial Radiation - Exposure to Filtered Xenon-Arc Radiation ISO 16474-2 Paints and varnishes - Methods of exposure to laboratory light sources - Part 2: Xenon-arc lamps ISO 4892-2 Plastics - Methods of exposure to laboratory light sources - Part 2: Xenon-arc sources VDA 75202 Automotive interior materials - Colorfastness and ageing test against light at high temperatures: Xenon arc VW PV 1303 Non-Metallic Materials - Lightfastness Test for Interior Parts VW PV 3929 Non-Metallic Materials - Weather Ageing in Dry, Hot Climate VW PV 3930 Non-Metallic Materials - Weathering in Moist, Hot Climate Product Advantages

Energy-Efficient Air Cooling System Eliminates the need for water chillers, reducing energy consumption by up to 40% compared to traditional water-cooled models.

Low-noise operation (<60 dB) ensures a quiet testing environment.

Cost-Effective Maintenance No water pipes, filters, or coolant replacements required.

Simplified design minimizes downtime and maintenance costs.

Rapid Thermal Cycling Achieve temperature shifts from -20°C to 80°C in <10 minutes, accelerating test cycles without compromising accuracy.

Advanced Spectral Control Precision filters mimic natural sunlight (UV, visible, and IR spectra) for realistic aging simulation.

User-Centric Design 10.4” touchscreen with intuitive interface, multi-language support, and remote monitoring via Wi-Fi/Ethernet.

Product Features

Dual-Mode Cooling Technology Combines forced-air convection with a high-efficiency heat sink to stabilize lamp temperature during prolonged tests.

Intelligent Irradiance Control Closed-loop feedback system maintains ±0.02 W/m² irradiance accuracy (300–400 nm range).

Programmable Climate Control Independent settings for temperature (-20°C to 100°C), humidity (10%–95% RH), and rainfall simulation (0–50 cycles/hour).

Safety First Overheat protection, emergency stop, and UV-shielding acrylic door ensure operator safety.

Modular Expandability Add-on modules for ozone control, salt spray corrosion, and mechanical stress testing.

Accessories

Standard Kit: 1 × Air-Cooled Xenon Lamp (6500K) 2 × Adjustable Sample Racks (Max.

10 kg load) 1 × Calibrated Radiometer 1 × USB Data Logger (16GB) 1 × UV-Resistant Acrylic Viewing Window Optional Add-Ons: Humidity Control Module (-20°C to 80°C, 10%–95% RH) Remote Monitoring Software (IoT-enabled) Multi-Language Interface Pack (10+ Languages) Spare Lamp Kit (2x Xenon Lamps + Filters) Technical Parameters

Specification Details

Xenon Lamp Power 1.8 kW (Air-Cooled, 6500h lifespan)

Test Chamber Size 700 × 500 × 500 mm (W×D×H)

Temperature Range -20°C to 100°C (±2°C accuracy)

Humidity Range 10%–95% RH (±3% accuracy)

Irradiance Range 30–120 W/m² (300–400 nm, adjustable)

Test Cycles 1–9999 hours (programmable intervals)

Power Supply 220V/50Hz/60Hz, 20A (Single-phase)

Dimensions (W×D×H) 1200 × 800 × 1800 mm

Weight 350 kg (Net) Our Qinsun Si 220 weathering tester can completely replace the Atlas Xenotest 220/220+ xenon lamp weathering tester, with reliable product quality, stable performance and accurate test data;
