Analogue Track Gauge Affordable Price Simple Operate And Easy Calibrate - China
price: 160.00 Dollar US$

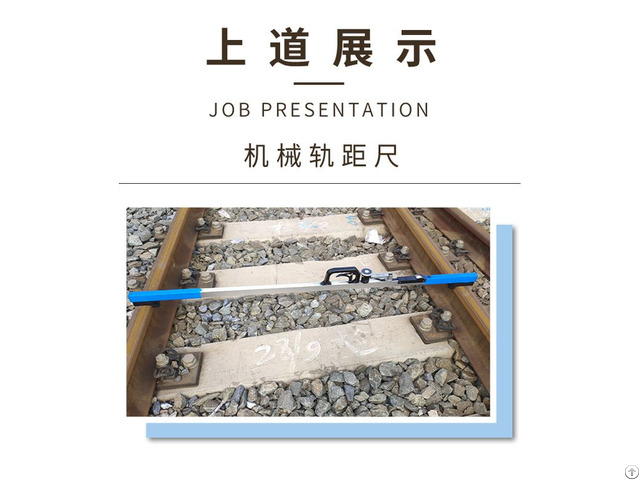

Analogue track gauge is used for measuring the railway track gauge, check rail gauge, back to back distance, super-elevation.
It is Suitbale for railway speed not greater than 160km/h.
Traditional compass is more easier for rail workers to accept and operate.
Light weight structure is convenient to carry.
Model(1435mm)：TGC-W- II 1435
Track gauge(mm)：1410-1470
Check Rail Gauge(mm)：1381-1401
Back to back distance(mm)：1338-1358
Super-elevation range(mm)：-150~+150
Super-elevation resolution(mm)：1
Track gauge resolution(mm)：1
Application rail line：railway speed less than 160km/h
Model for narrow gauge 600mm 900mm 1067mm
Model for broad gauge 1520mm 1600mm 1676mm for choose.
There is a discount for more than 50 units
Company Contact:
- Posted By: Wuhan linkage track equipment co.,ltd
- Phone: 07103229062
- Address: Room 1007, Block B, Building 1, Huagong Science Park Modern Service Industry Base, University Park R, 武汉市 （Wuhan City）, 中国 , China
- Email:
- Website: https://www.linkrailtech.com/
Published date: June 17, 2024
- Business Description: Wuhan Linkage Track Equipment Co., Ltd established in 2013, We are the leading manufacturer for railway equipment which are being used all over the world.
We are a new and high-tech enterprises which integrates R&D, production and sales service, owning advanced production equipment, perfect inspection instrument and R&D center with strong technical force.
Specialized in production of railway measuring equipment and track maintenance machine, such as rail tamping machine, rail drilling machine, rail cutting machine and other railway related products.
