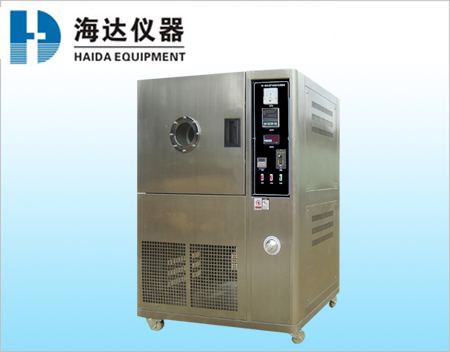

Anti Yellowing Aging Tester - China

1 - Function:

The machine can promote the increase of sulfur rubber

deterioration, to calculate the change rate of tensile and

elongation before and after heat.

It’s generally thought

that test for one day at 70°C, in theory as exposed to the

atmosphere for 6 months.

Anti-yellowing: this machine stimulates the atmosphere

environment, driven by the sun ultraviolet radiation.

It’s

generally thought that the appearance change at 50°C for 9

hours, in theory as exposed to atmosphere for 6 months.

2 - Specifications:

Standard: JIS-P8127; ASTM D1148

Inner Box Size: 50×50×60cm

Temperature Range: Normal Temperature~200°C

Control Mode: Automatic Calculation Controller

Temperature Display: 0.1°C

Control Accuracy: ± 3°C

Distribution Accuracy: ± 1°C(at-100°C)

Time Memory: 0-999 hours, Power Failure Memory Type, with

Buzzer

Wheel Speed: ￠45cm, 10±2 round/ min

UV Light Source: UV300W Bulb

Standard Accessories: Shelf Board 2 pieces

Heating Method: Hot Air Circulation

Security Devices: Over-temperature power-off indicator

light;

Safety overload switch ammeter

Manufacturing Material: Internal Stainless Steel SUS304;

External Advanced Baking Varnish

Outside Dimension (L×W×H): 114×94×130cm

Weight: 140kg

3 - Features:

1) To simulate outdoor weathering, the UV aging testers

exposes materials to alternating cycles of UV light and

moisture at controlled, elevated temperatures.

It simulates

the effects of sunlight using special fluorescent UV lamps.

It simulates dew and rain with condensing humidity and/or

water spray.

2) The UV accelerated weathering tester is the simplest,

most reliable, and easiest to use weathering tester

available.

With thousands of testers in use worldwide, it is

the world's most widely used weathering tester.

4 - Structure:

1 - The inner bladder of the chamber is made of imported

high-class stainless steel plate while the outer bladder is

made of A3 steel plate sprayed with plastic.

2 - The heating mode adopts inner bladder trough type

heating with its rapid temperature rise and even temperature

distribution.

5 - Control System:

1 - Adopts black aluminum plate to connect temperature

sensor and adopts black board temperature meter to control

heating so as to ensure more stable temperature.

2 - The radiometer probe is fixed so as to avoid the frequent

installation and disassembly.

3 - The radiation quantity adopts the special UV

irradiatometer with high-precision display and measurement.

4 - The radiation intensity is not more than 50W/m2.

5 - The illumination and condensation can be controlled

independently or alternating and circularly.

Instruction:

1, Temperature controller: it is used to set inner chamber

temperature;

2, Timer: 0~999.9H, power failure memory;

3, Fan: open the fan in the machine;

4, Dial: dial rotary switch;

5, Heat light: it will light when heat the test chamber;

6, Heat one: low temperature test switch;

7, Time switch: timer switch;

8, Light: anti-yellowing light switch in the test chamber;

9, Finish light: it will light when finish the test;

10, Heat two: high temperature test switch;

11, Power: main power switch;

12, Overheat protector: overheat protector switch.
