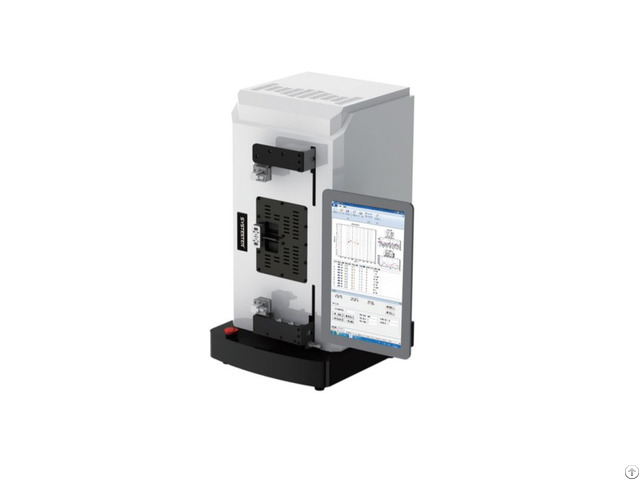

Astm F1921 Hot Tack Tester For Packaging - China

ASTM F1921 Hot Tack Tester - Hot Tack Tester for Packaging Product Detail Application: The tester is used for the measurement of the strength of heat seals formed between thermoplastic surfaces of flexible barrier materials and webs, immediately after a seal has been made and before it cools to ambient temperature.

ASTM F1921 Hot Tack Tester - Hot Tack Tester for Packaging Features: 1: Embedded system control, remote service and updating 2: Touch screen operation, easy to operate 3: TFT LCD display, UI flattening design 4: Dual heat jaws, temperature controlled independently 5: Hot tack curve and other graphic outputs.

6: Pressure easy to adjust, heat temperature and time touch screen input.

7: Sample pneumatic clamping 8: Over temperature protection, over pressure protection 9: RS232 communication port.

10: DSM system is optional(Laboratory Management Information System), easy to manage and share test data.

ASTM F1921 Hot Tack Tester - Hot Tack Tester for Packaging Technical Indexes: Sealing Temperature

Room Temperature~300C

Resolution ±0.1C

Accuracy

±0.2

Sealing Pressure

0.1N/mm2~4.0N/mm

Dwell Time

0.025s~ 999.9s

Load Range

0~100N(Standard)

0~50N(Optional)

0~250N(Optional)

0~500N(Optional)

Humidity range Max0.01% F

Heat Jaw Surface

10mm × 40 mm (customized)

Peeling Speed

21mm/s-750mm/s

Sample size Length ≥300mm, Width ＜40mm, Thickness ＜1mm;
