Astm F1921 Hot Tack Tester - China

Hot Tack Tester measures the strength of heat seals formed between thermoplastic surfaces immediately after the seal has been made and before it cools to room temperature.

Hot Tack tester is especially important for vertical form-fill-seal packaging.

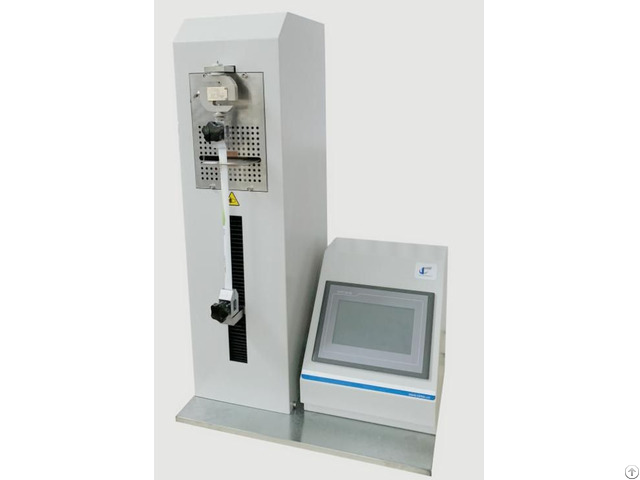

HTT-02 Hot Tack Tester Features

● Both Method A and Method B described in ASTM F1921

● P.I.D.

temperature control

● 7 inch HMI touching screen operation

● PLC control inside

● Aluminum encapsulated sealing jaws

● Auto zeroing, overload and over travel protection

● Test speed 200cm/min, 1200cm/min or others

● RS 232 port & professional software (optional) HTT-02 Technical Specifications Sealing Temperature Ambient~250℃

Temp Accuracy 0.2℃

Heat Seal Dwell Time 0.1~9999s

Hot Tack Dwell Time 0.1~9999s

Sealing Pressure 0.15MPa~0.7MPa

Sealing Jaws 50mmx10mm Teflon Coated

Sealing Jaws Heating Double Heating

Load Cell 200N(Optional: 30N50N100N5 00N)

Accuracy 0.5 F.S.

Resolution 0.01N Standard ASTM F1921
