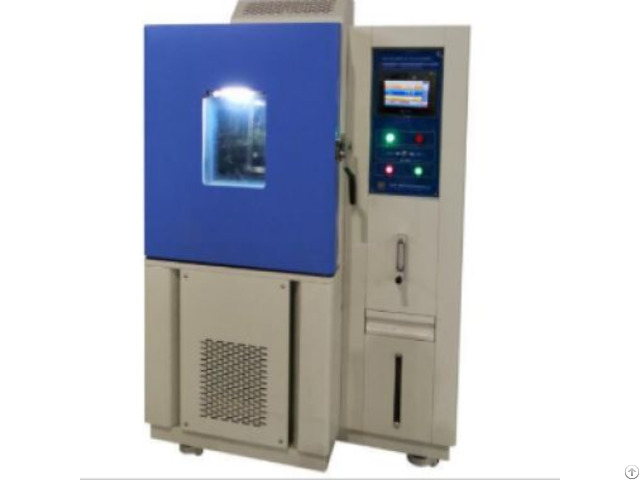

Automotive Wires Ozone Aging Chamber Qinsun - China

Standards ISO 6722: Road vehicles – Electrical cables – Dimensions and test methods.

Standards ISO 6722: Road vehicles – Electrical cables – Dimensions and test methods.

SAE J1128: Low-voltage cables for automotive applications.

QC/T 730: Automotive wire bundle ozone resistance test method (China).

JASO D611: Automotive parts – Ozone resistance test for rubber and plastics (Japan).

Product Advantages Unmatched Compliance: Certified for global automotive standards, ensuring seamless integration into OEM and Tier 1 supply chains.

Precision Ozone Control: Advanced generators maintain stable concentrations (10–1000pphm) with ±10% accuracy, critical for simulating harsh engine bay environments.

Smart Design: Rotating sample rack (2RPM adjustable) mimics real-world mechanical stress during aging tests.

Energy Efficiency: 3.5KW power consumption with rapid heating/cooling cycles reduces operational costs.

Safety Certified: CE-marked with over-temperature protection and ozone leak detection for lab safety.

Product Features Dual-Zone Climate Control:

Temperature Range: RT +10°C to 60°C (adjustable via PID controller).

Uniformity: ±2°C across 400x500x500mm workspace.

Stability: ±0.5°C fluctuation, ±2°C deviation.

Ozone Generation System:

Corona discharge generator with real-time concentration display.

Automatic calibration for consistent exposure levels.

Data-Driven Testing:

Built-in data logger records temperature, humidity, and ozone levels.

USB export for traceable test reports.

Ergonomic Access:

Full-view observation window with anti-ozone glass.

Quick-release door seal for easy sample loading.

Technical Parameters Parameter Specification

Chamber Dimensions 400mm (W) x 500mm (D) x 500mm (H)

Temperature Range RT +10°C to 60°C

Temperature Control PID microprocessor, ±0.5°C stability

Ozone Concentration 10–1000pphm (adjustable), ±10% deviation

Rotation Speed 0–5RPM (adjustable via touchscreen)

Power Supply 380V/50Hz (220V/60Hz optional)

Power Consumption 3.5KW (peak)

Noise Level ≤65dB

Controller 7” touchscreen with multi-language support
