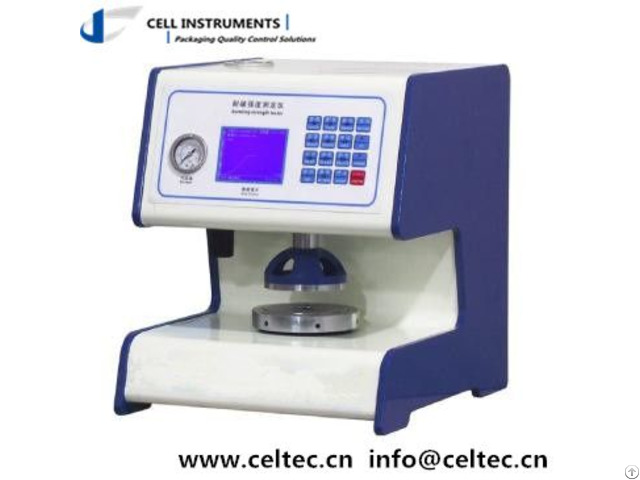

Board Bursting Strength Tester Iso 2759 - China

Board bursting strength tester is a new type testing instruments for the bursting strength of corrugated boards, which is designed in accordance with ISO2759 'Board-Determination of bursting strength'.

Board bursting strength tester principle:

A test piece, placed over a circular elastic diaphragm, is rigidly clamped at the periphery but free to bulge with the diaphragm.

Hydraulic fluid is pumped at a constant rate, bulging the diaphram until the test piece rutures.

The bursting strength of the test piece is the maxium value of the applied hydraulic pressure.

Technical features

 LCD display and PVC operation panel

 Automatic test process, automatic bursting judgment

 Microcomputer real time data collection and data memory

 Micro printing

 Synchronous motor drive for stable and precise pressure output

Board bursting strength tester Technical data

Measuring Range: 150~6000kpa

Accuracy: + / - 0.5% or less(≤±0.5%)

Resolution: 0.01 kpa

Deformation Error: 1 mm or less

Plates Concentricity: 0.25 mm or less(≤0.25mm)

Diaphragm resistance : bulge height 10mm/(170～220)kPa, bulge height 18mm/(250～350)kPa

Transmit hydraulic volume: 175±5ml/min

Pressure Plate Diameter: upper: 31.5±0.5mm, lower: 31.5±0.5mm

Display: 4.0 in.

LCD with curve display

Clamping Force: ≥690kpa (adjustable)

Unit Conversion: Kg/cm2, kpa, LBF/in2

Dimension: 360*420*510mm

Weight: 55KG

Standards

ISO2759, GB1539, GB/T6545

Cell Instruments is committed to development of material testing instruments for plastic, paper, bottle, box, containers, etc., PLC program and machinery customization.

Please contact +86 531 88977152 (mail: info#celtec.

cn Skype: smrelin ) for more information.

Let us be a cell of your quality.
