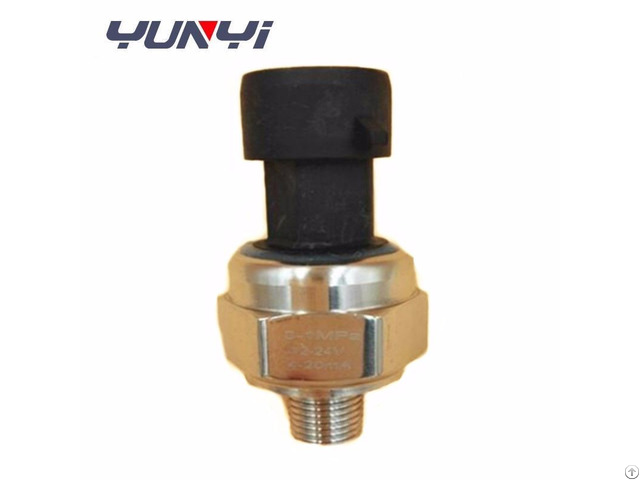

China Cheapest Mini Pressure Transmitter - China
price: 19.00 Dollar US$
China cheapest mini pressure transmitter
1 - Range: 0 ~ -1, -10, -50, -100KPa, -100KPa, -50KPa ~ 0Kpa 2 - Overall accuracy: 0.1% FS, 0.2% FS, 0.5% FS 3 - Output signal: 4 ~ 20mA (two-wire), 0 ~ 5V, 1 ~ 5V, 0 ~ 10V (three-wire) 4 - Supply voltage: 24DCV (9 ~ 36DCV) 5 - Medium temperature: -20 ~ 85 ℃ 6 - Ambient temperature: room temperature (-20 ~ 85 ℃) 7 - Load Resistance: Current Output: maximum 800Ω; voltage output: more than 50KΩ 8 - Insulation resistance: more than 2000MΩ / 50VDC 9 - Response time: <1ms 10 - Sealing class: IP65 11 - Long-term stability: 0.1% FS / year 12 - Vibration effects: in the mechanical vibration frequency 20Hz ~ 1000Hz, the output changes less than 0.1% FS 13 - Electrical connection: Hirschmann connector (other optional) 14 - Threaded connection: M20 × 1.5, other threads can be designed based on customer requiremen
Company Contact:
- Posted By: Xi'an Yunyi Instrument Co,.ltd
- Phone: 17391772083
- Address: Inland Port Mansion, No.9 Gangwu Road, Xi'an International Trade & Logistics Park, Xi'an City, Shaanxi Province, China
- Email:
- Website: https://yunyiyibiao.en.alibaba.com/
Published date: June 5, 2018
- Business Description: Xi'an Yunyi Instrument Co., Ltd.,
specializing in Piston dead weight tester, pressure calibrator, hand test pump, Pressure gauges / transmitters, level meter , flow meter, temperature and ph instruments with more than 10 years.
Related listings
-
Silicon Piezoresistive Pressure Sensor 4 20ma For AirEquipment - Testing / Measuring - Xi'an Yunyi Instrument Co,.ltd - China - June 5, 2018 - 15.00 Dollar US$316L SS Piezoresistive Silicon Pressure Sensor, the main element is a diffused silicon with high stability. It utilizes silicon oil to transfer pressure from 316L stainless steel diaphragm to sensing element. The sensing element uses 316L stainless s...
-
Diaphragm Membrane Pressure TransmitterEquipment - Testing / Measuring - Xi'an Yunyi Instrument Co,.ltd - China - June 5, 2018 - 73.00 Dollar US$Flush diaphragm pressure transmitter, designed for food and pharmaceutical industry, is suitable for CIP/SIP cleaning and sterilization.Smart compact design, the welded process diaphragm medium parts is made of high quality stainless steel 316L, fill...
-
Air Differential Pressure TransmitterEquipment - Testing / Measuring - Xi'an Yunyi Instrument Co,.ltd - China - June 5, 2018 - 90.00 Dollar US$Range FM108 0~+/-100, 250, 500, 750, 1000 Pa FM112 0~+/-1000, 2500, 5000, 7500, 10000 Pa Precision ±0.5% FS Unit FM108/ 112 Pa, mmH2O, mbar, inWG, mmHG, daPa, KPa, hPa Allowable pressure FM108 15, 000Pa FM112 150, 000Pa Outlet signal 1 group 4 ~ 20 m...
