China Oem High Temperature Melt Pressure Sensor Price - China
price: 235.00 Dollar US$
Pressure Range: 0~1-300MPa
Accuracy: 0.25%FS; 0.5%FS
Output: 2.0mV/V;4~20mA;0~5V;1~5V; 0~10V
Calibration signal: 80%FS calibration; zero and full scale adjust
Working Temperature: 0~450°C
Power supply: Sensor: 10VDC(6-12VDC) Transmitter: 24VDC(9~36 V)
Long stability: 0.1%FS/year
Insulation resistance: more than 2000M Ω 100VDC
Vibration influence: For the mechanical vibration of 20HZ-1KHZ, the output change is less than 0.1%FS
Seal grade: IP65
Signal extraction: 5pin
Thread connection: M14X1.5(general); M16X1.5; M18X1.5; M20X1.5; M22X1.5(general); Other threads can be designed according to user requirements.

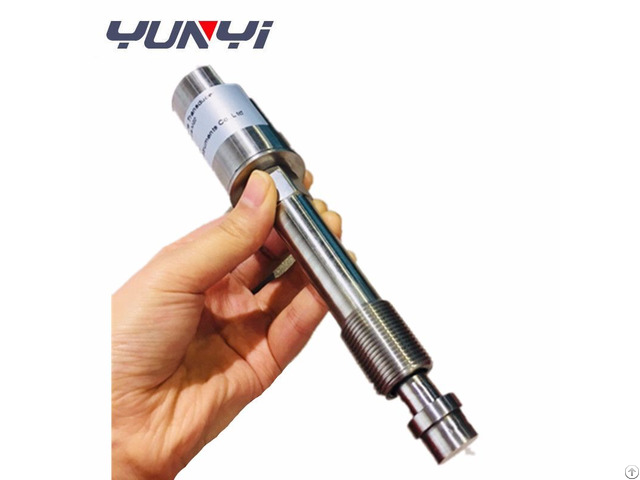

China OEM high temperature Melt Pressure Sensor price
Company Contact:
- Posted By: Xi'an Yunyi Instrument Co,.ltd
- Phone: 17391772083
- Address: Inland Port Mansion, No.9 Gangwu Road, Xi'an International Trade & Logistics Park, Xi'an City, Shaanxi Province, China
- Email:
- Website: https://yunyiyibiao.en.alibaba.com/
Published date: June 6, 2018
- Business Description: Xi'an Yunyi Instrument Co., Ltd.,
specializing in Piston dead weight tester, pressure calibrator, hand test pump, Pressure gauges / transmitters, level meter , flow meter, temperature and ph instruments with more than 10 years.
