Circular Locus Pilling Tester - China
price: contact company for price
Testing Standards:
GB/ T 4802.1, JIG 040- 1990
Product Information:
The Circular Locus Pilling Tester is used for? determining the pilling and fuzzing of? all kinds of fabrics to evaluable the product quality and process, such as wool, chemical fiber, mixed, kitted and woven fabrics.
During the test, fabric is rubbed against a nylon brush and abrasive, or only against an abrasive under controlled conditions.
Technical Parameters:
1 - Contact gap between abrasive assembly and abrasive platform: ≤ 0.2mm;
2 - Parallelism of grinding head and grind plane: ≤ 0.3mm;
3 - Moving locus: ￠ 40mm circle track moving;
4 - Nylon brush with paralleled surface, the altitude difference: ＜ 0.5mm;
5 - Reciprocating speed of abrasive platform: 60±1r/ min;
6 - Weight of grinding head: 490cN±1% ;
7 - Weight of larger loading weight/ pieces: 290cN±1% ;
8 - Weight of little loading weight/ pieces: 100cN±1% ;
9 - Times of options: 1～ 9999;
10 - Meet the requirements of standard tests.
Company Contact:
- Posted By: Qinsun Instruments
- Phone: 18539951658
- Address: No. 2578 Minhang District Gu Dai Road, Shanghai , China
- Email:
- Website: https://www.qinsun-lab.com
Published date: September 21, 2015
- Business Description: Qinsun Instrument Co., LTD was founded in 2010, comprised of many
experienced engineers and designers standing in the forefront of the
industry.
Qinsun specialize in the research and development of high
quality lab instrument for textile testing industry.
Our head office in
Shanghai and we provide high quality testing instrument and
comprehensive service for textile factory, academic research institute
and textile lab worldwide.
Our Products:
- carpet tile thickness gauge
- hexapod tumbler tester
- footwear flection tester
- seam fatigue tester for textile testing
- cold fold tester chrysler
Related listings
-
Ici Mace Snag TesterEquipment - Testing / Measuring - Qinsun Instruments - China - September 21, 2015 - contact company for priceApplications: ICI Mace Snag Tester is designed for rapidly determining the tendency of fabrics to snag ( pull yarn loops from the fabric) in normal wear. Product Information: The ICI Mace Snag Tester completes with viewing cabinet and comparison phot...
-

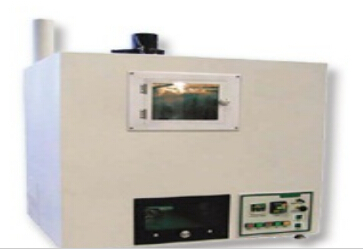

Gas Fume Chamber For Textile TestingEquipment - Testing / Measuring - Qinsun Instruments - China - September 21, 2015 - contact company for priceTesting Standards: AATCC 23, BS 1006: G02, GB/ T 11040 Applications: Gas Fume Chamber is used to determine the colorfastness of textiles when exposed to atmospheric oxides of nitrogen derived from the combustion of gases. Product Information: The gas...
-
