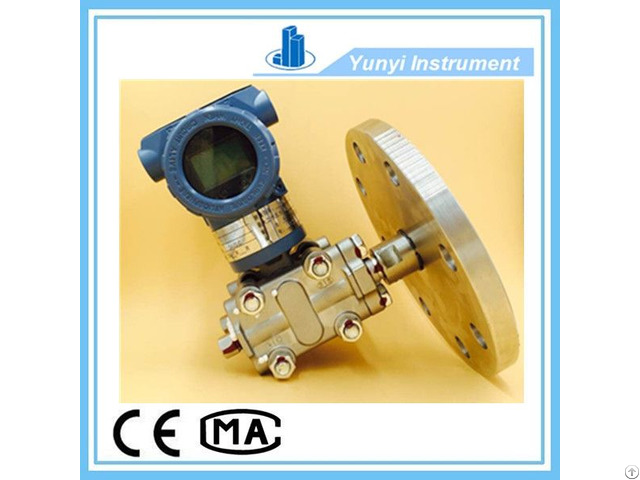

Direct Mounted Diaphragm Seal differential pressure transmitter Description: The capacitive differential pressure transmitter can measuring liquids’ level and density of kinds of container accurately.

Transmitter is mounted to the container with pipe flange.

Be propitious to measuring medium of high temperature, high viscosity and easy to subside or strong corrosive.

Diaphragm subassembly have plane and plug-in types.

flange size: 3inch and 4inch; pressure grade: 50Ib and 300Ib.

The membrane can select 316 stainless steel, Hastelloy or tantalum according to measure medium.

Range

Range code

Range

Measuring range

Min.

Max.

4

0.374KPa

37.4KPa

-37.4~37.4KPa

5

1.868KPa

186.8KPa

-186.8~186.8KPa

6

6.9KPa

690KPa

-690~690KPa Technical Data Output

Analog output: two –wire 4-20mADC

Digital output: two –wire 4-20mADC and superimposing variable digital signal accord with HART

Power supply

supply voltage 12.5-45VDC

Limit load

Max load resistor Rmax in loop decided by the supply voltage, see the below drawing.

HART PROTOCOL require the load resistor not less than 250Ω, not more than 600Ω

Communication distance

Max.

1.5Km, multi-address communication can connect 15 smart transmitters Max.

Display

4 digital display, 5 digit LCD display, pointer type.

Explosion-proof

ExiaIICT5;explosion suppression type

Zero offset

Can positive transfer or negative transfer, but can not overstep the utmost value

Temperature

ambient temperature -40-85℃(When choose LCD : -20-70℃)

Medium temperature

-40~104℃

Static pressure and single side overpressur

3.45KPa(absolute pressure)~31.2MPa(gauge pressure)

Relative humidity

5~98%RH

Run-up time

less than 5 sec.

Capability change

Less than 0.16cm3

Damp adjust

0.20~25 second

Malfunction alarming

If occur malfunction, automatism diagnose function will output 3.9 or 21.0mA

Configuration protection

To avoid the datas are modified random, can utilize software or protect switch lock the record data
