Dynamic Strain Amplifiers - China

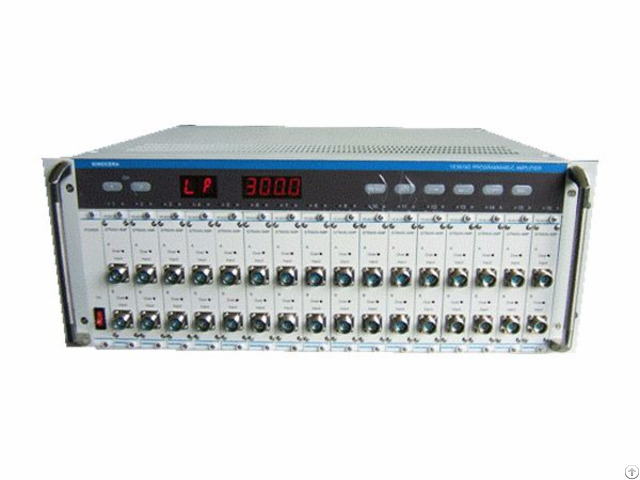

Model: CJ3818D Model CJ3818D

Channels 4, 8, 16, 32, 64

Bridge Resistance 60-10000Ω

Input Range 0 - ±50000με

Output Range ±5VP/5mA

Noise ≤3μV

Stability Zero ±0.1μV/℃; ±0.1%/F.

S/2h Sensitivity ±0.01%/F.

S//℃; ±0.1%/F.

S/2h

Bridge Voltage 1, 2, 3, 4, 10VDC/50mA

Gain Steps 100, 300, 1000, 3000 Accuracy ≤±0.5% Nonlinearity 0.1% FS

Balance (Resistance: Within 1%) Auto: ±5000με

Measurement Mode DC, AC, PK+, PK-

Frequency Range DC-300kHz

Low-Pass Filter(-3dB, -12dB/OCT) 30, 100, 300, 1k, 3k, 10k, 100k, 300kHz

Operating Environment Operating Temperature: -10 to 50℃; Humidity: 85% R.H.

Power Supply AC220V50Hz

Dimensions(mm) 499W ×177H×377D

Weight 6.5kG

Input/Ouput Type Input: 7-Pin Socket

Output: LBNC

Company Contact:

• Posted By: Xian Chuangjin Electronic Technology Co., LTD

• Phone: +862989161392

• Address: The 30th Floors,Kaixuan Massion,Xuanwu Road West,Weiyang District Xian City,Shaanxi Province,China 7, Xian , Shaanxi , China

• Email:

• Website: http://www.xian-sensor.com

• Business Description: Xian Chuangjin Electronic technology Co., LTD founded in year of 2013 is professional in researching and providing a series of Pressure/Level/Temperatur e Transmitter, Sensor, Switch Controller, Flow Meter, Density Meter, Vibration Wire Piesometer, MINI Osmometer, Earth Pressure Cell, Dynamic Strain Amplifier.

  We offer ODM and OEM service and own ISO9001: 2000 Certificate.

  Pressure Transmitters and Temperature Transmitters are granted CE certificate.

  These products are also widely used in aeronautical and space, waterway, navigation, petrochemical industry, irrigation works, electric power, coal metallurgy, water supply, natural gas supply, steam and warm supply, medicine and bioengineering etc and scientific research institutions.



  When there's no standard product to fit your application or cost requirements, simply talk to us about your requirements, both technical and budgetary, and well develop your customer solution, including power supplies, measurement range, output, port type etc, then fully test the system prior to supplying it to you on time, complete and ready to install.

  Welcome customer from domestic and abroad to inquiry.
