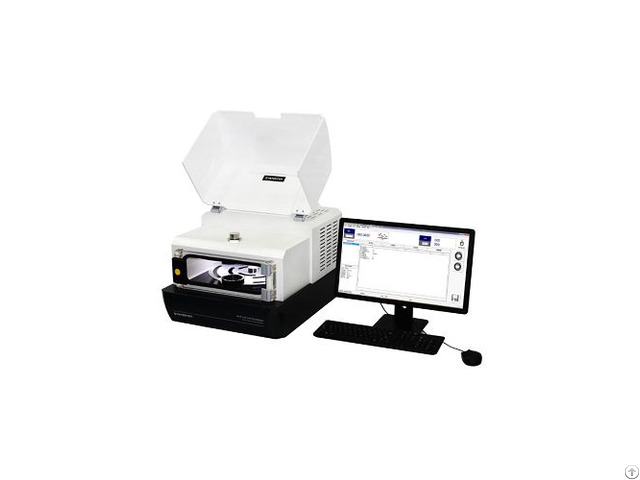

Flexible Material For Geomembrane And Tent Water Vapor Permeability Test Apparatus Lab Testing - China

Flexible Material For Geomembrane And Tent Water Vapor Permeability Test Apparatus Lab Testing Product Details Application:

Based on the humidity sensor detection method and available for the water vapor permeability test of heat exchange membranes, nonwoven fabrics and flexible barrier materials.

Flexible Material For Geomembrane And Tent Water Vapor Permeability Test Apparatus Lab Testing Features: features Weighing method

Dual weighing modules, patent technology

18 specimens, continuously test

One-button test, test automatically in whole process

Multiple test modes optional

Temperature and humidity auto control

Data curves display

Computer control

Environment temperature and humidity sensor inside

Unit based on embedded system, 24bit Δ-Σ AD

Traceable reference film calibration

Supports DSM system (DSM, lab data management system) Principles：

The specimen is clamped between the upper and lower chamber, the upper chamber is high humidity side, and the other side of specimen, lower chamber is purged by a stream of dry gas, due to the effect of water concentration gradient at two sides of the specimen, water molecules will permeate through the specimen into the dry gas side, penetrated water molecules will be carried to the relative humidity sensor which generates the proportional signal, so water vapor transmission rate will be obtained by calculating the sensor signal.

Flexible Material For Geomembrane And Tent Water Vapor Permeability Test Apparatus Lab Testing Technical indexes: Test range 5 - 6500 g/m2·24h (Standard)

Resolution 0.001 g/m2·24h

Specimen amount 1 specimen

Temperature range 5C–95C

Temperature accuracy ±0.1C

Humidity range 100%RH (Standard)

Humidity accuracy ±1%RH

Test area 38 cm2 (Standard)

Specimen size >=150mm * 94mm

Thickness less 3mm

Carrier gas Dry Air, or 99.999% Nitrogen

Carrier flow 0~200 ml/min

Gas interface 1/8inch

Power supply AC 220V 50Hz

Dimension 330mm(L) * 600mm(D) * 330mm(W)

Net weight 30kg
