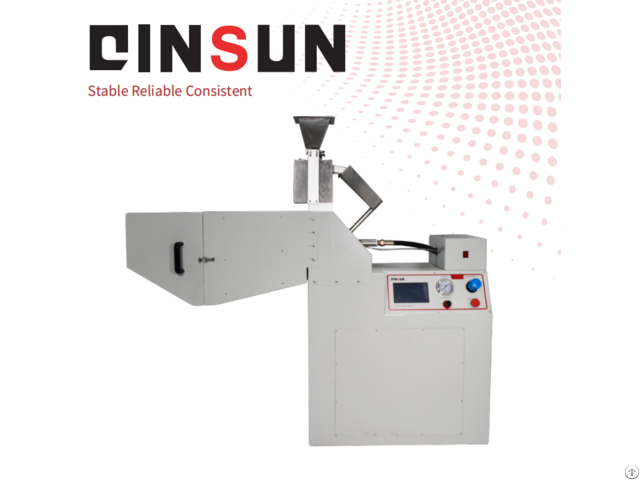

Gravel Resistant Impact Tester Qinsun - China

Standards ASTM D3170: Coating resistance to gravel impingement.

ISO 20567: Paints and varnishes – Resistance to stone chipping.

SAE J400: Automotive exterior component durability testing.

EN 14425: Aerospace material impact resistance protocols.

Product Advantages Precision Impact Simulation: Replicates real-world gravel impact scenarios (e.g., road debris, aviation particle strikes) with adjustable speed and angle controls.

Multi-Industry Applicability: Essential for automotive body panels, aircraft skins, train coatings, and architectural finishes.

High-Speed Airflow System: Generates consistent particle velocities (20–120 m/s) for repeatable testing across samples.

Modular Design: Interchangeable nozzles and sample fixtures accommodate diverse component geometries (e.g., curved automotive panels, flat building materials).

Advanced Safety Features: Enclosed testing chamber with integrated debris shield and emergency stop function.

Data-Driven Analysis: High-resolution camera system captures pre/post-test images for quantitative damage assessment (dents, cracks, delamination).

Product Features Airflow Control System: Digital regulation of air pressure (0.2–0.8 MPa) and particle velocity for standardized testing.

Adjustable Impact Angle: 0–90° tilt mechanism to simulate horizontal, vertical, or oblique impact angles.

Sample Fixtures: Universal clamps for securing automotive panels, aerospace composites, or building materials up to 500×500 mm.

Touchscreen Interface: Programmable test cycles, air pressure, and impact angles with real-time data logging.

Debris Recycling System: Integrated funnel and vacuum system for automated gravel collection and reuse.

Safety Interlocks: Transparent enclosure with light curtains to halt operation during access attempts.

Technical Parameters Parameter Specification

Impact Angle 0–90° adjustable (1° increments)

Particle Velocity 20–120 m/s (adjustable)

Sample Dimensions Up to 500 × 500 mm

Gravel Size 3–16 mm (customizable)

Air Pressure Range 0.2–0.8 MPa (29–116 psi)

Control System PLC with 7-inch touchscreen (100 test memory)

Power Supply 220V/50Hz, 500W

Dimensions 800 (L) × 700 (W) × 1, 200 (H) mm

Net Weight 150 kg

Safety Rating CE/ISO 12100 compliant
