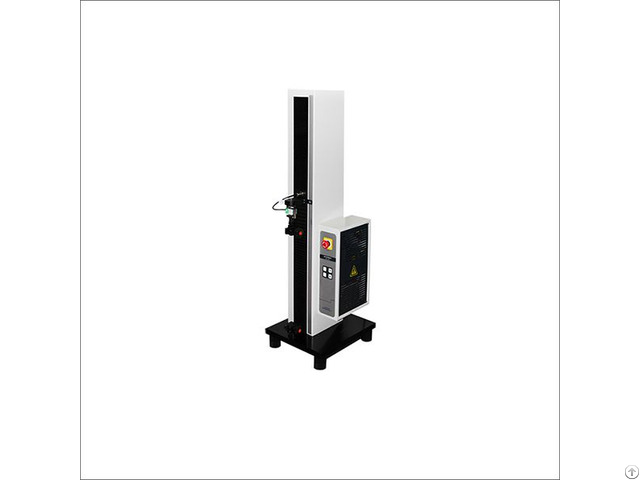

How To Test Tensile Strength Of Plastic Film Nonwovon Materials Elongation - China

How To Test Tensile Strength Of Plastic Film/ Nonwovon Materials Elongation Products Details Application Applies to plastic films, sheets, rubber, laminated films, extrusion films, foils, paper, medical patches, release paper, non-woven fabrics etc testing of various items, such as tensile, break force, elastic modulus, elongation, seal strength, T-style peeling strength, 90 peeling strength, 180 peeling strength, widely used in food & pharmaceutical industries, quality inspection departments as well as research and development institutions.

How To Test Tensile Strength Of Plastic Film/ Nonwovon Materials Elongation Features 1: 3 patents and 2 counts of software copyright registration.

2: Bilingually controlled by computer and embedded system.

3: Highly accurate load cell, Bi-direction test.

4: High performance servo drive(Made in Japan).

5: Test speed can be preset freely through software.

6: Selectable load cell: 50N, 100N, 250N, 500N, 1000N.

7: Silence running, <25db@1000 - 8: ISO, ASTM standards test available and non-standard test available.

9: Electronic limit, computer preset, non-mechanical limit.

10: Overload protection, less power consumption.

11: DB9 RS232 communication port .

12: Tensilyst workstation support.

13: Tensile, break force, elastic modulus, seal strength, 90 peeling strength, 180 peeling strength test available.

14: Historical data traceable, system log.

15: 5 degrees user management.

16: Group test, auto multiple curves display, auto statistic calculation.

17: DSM system is optional(Laboratory Management Information System), easy to manage test data.

How To Test Tensile Strength Of Plastic Film/ Nonwovon Materials Technical Indexes Load range 50N, 100N, 250N, 500N, 1000N, 2.5kN.

(Customization available) Accuracy 0.03%FS max Max travel distance 1200mm.

Test speed 0.01mm/min – 1000mm/min.

Displacement accuracy 0.005mm.

Sample width 55mm.

(optional) Sample thickness 5mm.

(optional) Power supply AC 220V 50Hz.

(optional) Power consumption 300W.

(Max) Dimension 380mm(L) X 450mm(B) X 1309mm(H) Net weight 90kg.
