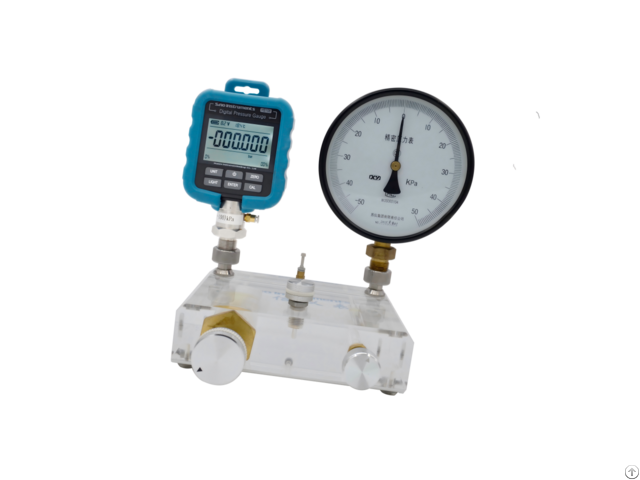

Hs700 Micro Pressure Comparison Pump - China

It is made from highly quality and transparent plexiglass material.

The operation of piston inside can be seen clearly.

The whole structure is more intuitive and compact.

The instrument is specially designed to generate micro pressure from vacuum to 0.5Bar.

The F-adjust valve could accomplish 0.01mBar pressure resolution.

It is a very stable Micro Pressure Calibrator.

The design of relieve valve makes the system return ti zeri pressure quickly.

Two standard pressure outputs are easy to connect gauges under test without using the wrenched.

The differential port also may connect gauges under test by hose.

It widely calibrated micro pressure instruments in field and laboratory.

Specification

Generated Pressure Range: -0.5-0.5Bar

Working media: Air

Adjust resolution : 0.01mbar

Material:

Body: transparent plexiglass Output : stainless steel

Seals : Buna-N

Output connection: M20*1.5 Female *2pcs
