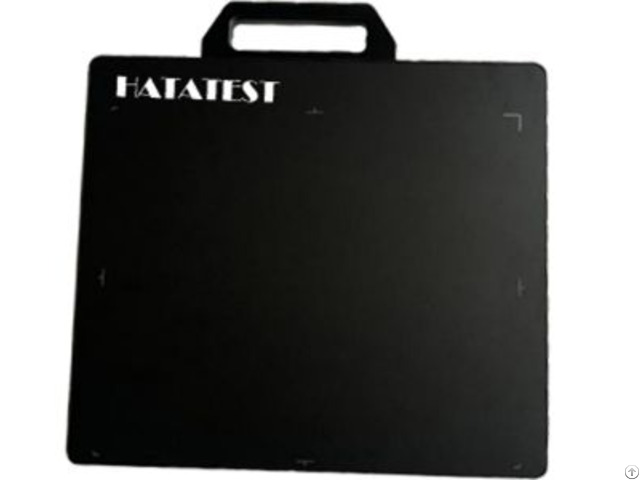

Htjw1012d Industrial Digital Radiography System - China
price: 15000.00 Dollar US$
HTJW1012D DR system consists of one set of industrial DR panel detector and one set DR software .
HTJW1012D wireless Portable Digital Radiographic system is a real industry DR system for NDT .
HATATEST HTJW1012D DR equipment flat panel detector is the only one that can match variable-frequency X RAY Generator all over the world.
HATATEST HTJW1012D NDT Flat panel detector based on ISO 17636 specification The Feature of HTJW1012D Digital Detector Array (DDA) are:
Scintillator: GOS/CSI
Pixel Pitch: 125μm
Size: 340×298×17mm
Imaging area: 300×250mm
Pixel matrix: 2400×2000
Limiting Resolution: 4.0Ip/mm
A/D: 16bit
Energy Range: 40-330kv
Working temperature: -10℃-40℃
Weight: 3.0kg
Company Contact:
- Posted By: HATATEST TECHNOLOGY LIMITED
- Phone: 0086 371 63317616
- Address: 15 FLOOR, 3#, MUHUA-LONG ZI HU, ZHENGZHOU,CHINA, Zhengzhou , Henan , China
- Email:
- Website: http://dr-hatatest.com
Published date: December 11, 2019 - Modified date: December 18, 2019
- Business Description: 1 .
Worldwide Unique technology, save more than 30% cost for NDT
2 .
HATATEST ranks first in the field of portable DR nondestructive testing in China.
3 .
HATATEST products have a market share of more than 70% in China (more than twice the total sales of the 2nd to 10th places).
4 .
Certified supplier of famous Group as CNPC, Sinopec, China Aerospace and so on
5 .
Chinese first NDT instrument R & D Cente
6 .
Designated equipment for China NDT qualification examination
