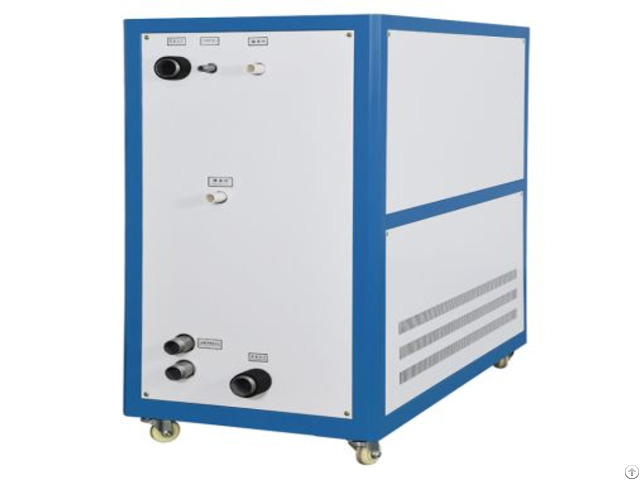

Industrial Chillers Qinsun - China

Applicable Standards

Industrial chillers adhere to global safety and performance regulations, including: ASHRAE 15 (Safety Standard for Refrigeration Systems)

ISO 5149 (Refrigerating Systems and Heat Pumps)

UL 1995 (Heating and Cooling Equipment)

CE Marking (EU Safety, Health, and Environmental Requirements)

GB/T 18430.1 (China’s National Standard for Vapor Compression Chillers)

These standards ensure energy efficiency, safety, and reliability across industries.

Working Principle

Chillers operate via a vapor-compression refrigeration cycle: Evaporation: Low-pressure refrigerant absorbs heat from the coolant (e.g., water/glycol mix) in the evaporator.

Compression: A compressor increases refrigerant pressure and temperature.

Condensation: High-pressure gas releases heat to the environment via air-cooled fins or water-cooled towers.

Expansion: The refrigerant expands, lowering its temperature before re-entering the evaporator.

For air-cooled models, fans dissipate heat; water-cooled systems use external cooling towers.

Test Principle & Applications

Chillers are tested for: Temperature Stability: ±0.1°C control accuracy under load.

Efficiency: Coefficient of Performance (COP) ratings ≥3.5 for energy savings.

Pressure Resistance: Leak tests ensure system integrity.

Key applications include: Plastics Industry: Cooling molds to prevent defects.

Medical Devices: Stabilizing MRI/CT scanner temperatures.

Food & Beverage: Chilling process lines or fermentation tanks.

Laser Systems: Preventing overheating in cutting/engraving machines.

Industrial chillers are indispensable for processes requiring precise thermal management, offering durability, energy efficiency, and compliance with stringent industry standards.

Main Parameters

Parameter Specification

Cooling Capacity 1–1, 000 kW (customizable)

Temperature Range -40°C to +35°C (adjustable via compressor/coolant)

Refrigerant Options R410A, R134a, R290 (eco-friendly alternatives)

Pump Type Centrifugal, magnetic drive, or positive displacement

Flow Rate 10–1, 000 L/min (process-dependent)

Power Supply 220V/380V, 50/60Hz (single/three-phase)

Controller PID microprocessor with alarms (over-temperature, low flow)

Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China, Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience, Based on international testing standards, We are also the instrument supplier for BV SGS laboratory, We provide one-stop solutions for lab instruments, Free Training and Turn-Key Service, Products exported all over the world, Offer 36 month warranty and are a trustworthy partner.
