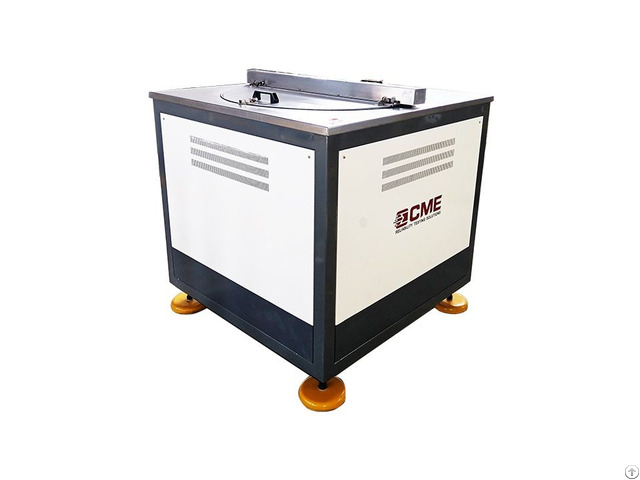

Krd32 Non Standard Centrifugal Constant Acceleration Tester - China

KRD32 series non-standard centrifugal constant acceleration testing machine is test equipment for military products to simulate dynamic centrifugal motion, dual-environmental force centrifugal motion and central high-speed rotating motion, so as to assess the anti-load performance of electronic components, small components and other electrical and electronic products and detect the anti-load performance specifications.

It is mainly used for routine dynamic structural integrity and adaptability tests of components, small parts and small complete machine on aircraft.

 The acceleration rising rate is large.

 Computer centralized control and measurement.

 Fully digital network closed-loop remote control, high control accuracy

 Complete safety protection functions

Technical Specifications

Model KRD32－1 KRD32－2 KRD32－3 KRD32－4 KRD32－5 Dual-environment centrifugal constant acceleration tester High-speed spin tester Centrifugal dynamic overload tester Spin shock compound tester Centrifugal vibration compound tester

Max Load (kg) 5 5 50 3 1000

Max Acceleration (g) 150 / 20 Shock 10000g--1ms 50g

Loading Rate (g/s) Customized / 10 / Standard Electro-Dynamic Shakers specifications

Installati on Radius (mm) Customized / 1500 / Customized

Max Rotating Speed(R/Min) 0-3000 0-100000 / 0-10000 /

Collector Ring Optional according to user requirements

Control Method Fully closed-loop digital network (remote) automatic control + manual control

Power Supply AC 380V ±10％ 50Hz Working Environment Temperature range 0～40℃, humidity ≤80%(no condense)
