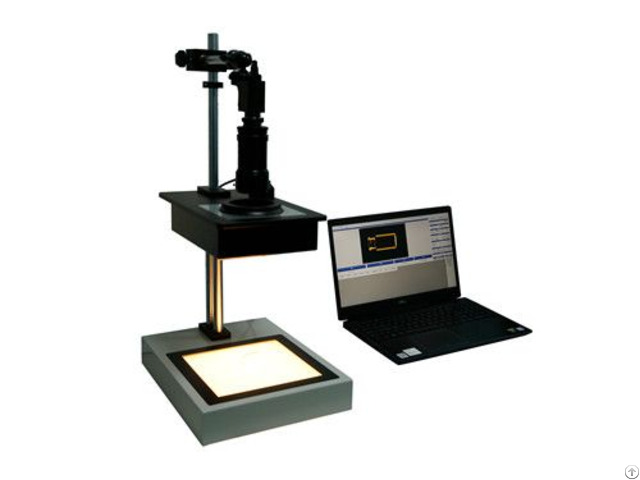

Lab Use Computerized Polariscope Stress Magnifier - China
price: 1.00 Dollar US$
This device automatically detects the image luminance, thereby finding the darkest point precisely .
By inputting sample photoelastic constant and thickness in advance, the stress value will be calculated by the computer .
In addition, Sensitive Color method is used to clearly define the direction of stress.
Features
1 - greatly improve the measurement accuracy with the combination of Senarmont, Sensitive Color method and machine vision processing; 2 - equipped with a zoom lens for detection of small samples ;
3 - measurement can be finished in 10s;
4 - save data and images automatically with a laptop Detecting range : 0-280nm
Magnification : 1-24 times Viewing field : max 176×132mm min 6.9×5.2mm
Accuracy : about ±1.5nm (scale compass rotation : ± 0.5°)
Dimension : W280*D380*680mm
Light source : LED
Power supply : AC220V
Weight: 15kg
Company Contact:
- Posted By: Suzhou PTC Optical Instrument
- Phone: +8618913228862
- Address: NO. 189 , Zhangji Road , Eocnomic Development Zone, Kunshan , China (Mainland), China
- Email:
- Website: https://www.ptc-stress.com/
Published date: January 5, 2021
- Business Description: PTC China is a national high-tech enterprise specializing in the design and manufacture of glass Surface Stress Meter , Polariscope , automatic Optical Inspection Equipment ( AOI ） and Vision Inspection System .
