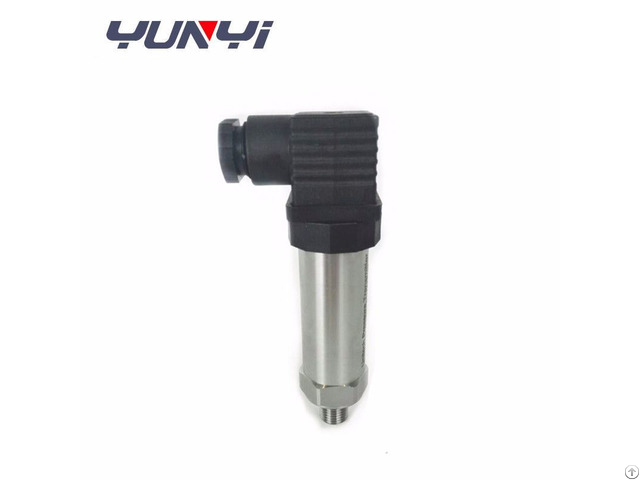

Liquid Pressure Transducer - China
price: contact company for price
liquid pressure transducer The main technical parameters Range: 0 ~ 1-300MPa Overall accuracy: 0.25% FS; 0.5% FS Output: 2.0mV / V; 4 ~ 20mA; 0 ~ 5V; 1 ~ 5V; 0 ~ 10V Calibration signal: 80% FS calibration; zero and span adjustment Working temperature: -10 ~ 450 ℃ Supply voltage: Sensor: 10VDC (6-12VDC) transmitter: 24VDC (9 ~ 36 V) Long-term stability: 0.1% FS / year Insulation resistance: more than 2000MΩ 100VDC Vibration: 20HZ-1KHZ to mechanical vibration, the output changes less than 0.1% FS Sealing class: IP65 Signal leads: five-pin connector 5pin Structural dimensions: long straight bar 152mm, hose length: 470mm Threaded connection: M14X1.5 (Universal); M16X1.5; M18X1.5; M20X1.5; M22X1.5 (Universal) Other threads can design melt pressure transmitter Regards, Katerina
Xi'an Yunyi Instrument Co., Ltd Skype: wangxiaoyuncalar
Tel: 0086-029-88812007
WhatsApp: +86-136691804 41
Company Contact:
- Posted By: Xi'an Yunyi Instrument Co., Ltd
- Phone: 00862988812007
- Address: Room 1203B, Inland Port Mansion, No.9 Gangwu Road, Xi an International Trade & Logistics Park, X, Xi'an , Shaanxi , China
- Email:
Published date: May 28, 2018
- Business Description: Professional manufacturer pressure transmitter, pressure gauges, pressure calibrator and deadweight tester.
And we also develop valves, flow meter, temperature transmitter, level transmitter, densitometer etc.
They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
