Mini Pressure Transmitter - China

Description 4-20mA oil pressure sensor transmitter price Pressure transmitters are precision engineered to fit most industrial pressure measurement applications.

The compact, rugged design makes these instruments suitable for applications including hydraulics and pneumatics, vacuum, test equipment, liquid level measurement, press control, compressor control, pump protection and numerous other processing and control operations.

A wide range of electrical connection and process connection options are avail-able to meet almost any requirement.

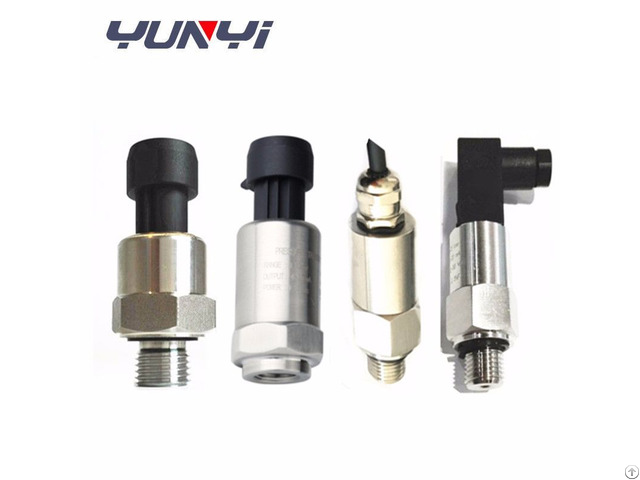

Detailed Images 4-20mA oil pressure sensor transmitter price

Low Cost 4-20mA oil pressure sensor transmitter priceLow Cost 4-20mA oil pressure sensor transmitter priceLow Cost 4-20mA oil pressure sensor transmitter priceLow Cost 4-20mA oil pressure sensor transmitter price

Specification Low Cost 4-20mA oil pressure sensor transmitter Output signal: 4-20mA, 0-20mA, 0-5V, 0-10V and others

Pressure Range: 0-0.1bar to 0-1000bar

Pressure Interface: G1/4, G1/2 1/4NPT, 1/2NPT and others

Electric Interface, L plug interface, Circular plug interface, Wire output, With cable

Contact member: stainless steel

Case: stainless steel

Internal transfer liquid(Not suitable for measuring range)>25bar

Synthetic oil{Halocarbon oil counter to Manufacturing structure with oxygen}{FDA counter to food industry}

Allowable temperature

Measure Medium: -30-100°C

Environmental temperature: -20-80°C

Storage temperature: -40-100°C Selection Guide Low Cost 4-20mA oil pressure sensor transmitter Features Low Cost 4-20mA oil pressure sensor transmitter price

Small size easy installation

Stainless steel case sturdy and durable

Wide temperature range: -40~125℃

Durable thin film sensor technology

Pressure ranges from -1 bar to 60bar

0.5-4.5V, 1-5V, 0-5V ratiometric outputs

0-10V, 4-20 mA, others available

Highly resistant to pressure spikes and vibration Applications Low Cost 4-20mA oil pressure sensor transmitter Automobile, compressor and refrigeration Industry

Engineering machinery

pressure control and monitor

Energy and water treatment system

Armarium, agricultural machinery

Hydraulic and pneumatic control system

Iron and steel industry, light industry

Pump, fitness equipment, household appliances

Hydraulics and pneumatics

Liquid level measurement

Test equipment
