New Energy Wire And Cable Extrusion - China

Product Introduction:

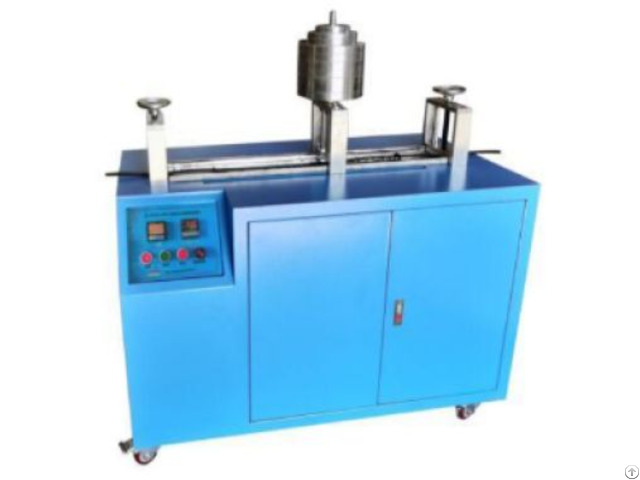

The new energy wire and cable extrusion jacket scratching tester is used to test the scratching resistance of the plastic jacket with an outer diameter of 30mm and above.

Standard:

JB/T10696.6-2007Test methods for mechanical and physical properties of wire and cable Part 6: Extrusion jacket scraping test GB/T 12706.3-2008: 19.17 - GB/T 33549 - CQC 1103-1105-2015 outer sheath scraping test Parameters:

1 - Angle iron scraper curvature radius: R1.5mm(standard requirements: greater than 1mm, less than 2mm) 2 - shaving stroke: {>}600mm 3 - grinding speed: (150-300)mm/s adjustable 4 - grinding times: 9999 times can be set 5 - test diameter range: 10mm≤D{<}90mm 6 - weight weight: 1N, 5N, 10N each 1 - 20N, 100N each 2 - 50N3 (line diameter of 90mm or more optional : 50N, 100N each one 7 - automatic reversing, scraping speed uniform 8 - test environment temperature monitoring: the test environment temperature is not in the range of 20+5℃C, the testing machine can not start 9 - Power supply: AC220V 50/60Hz 1KW
