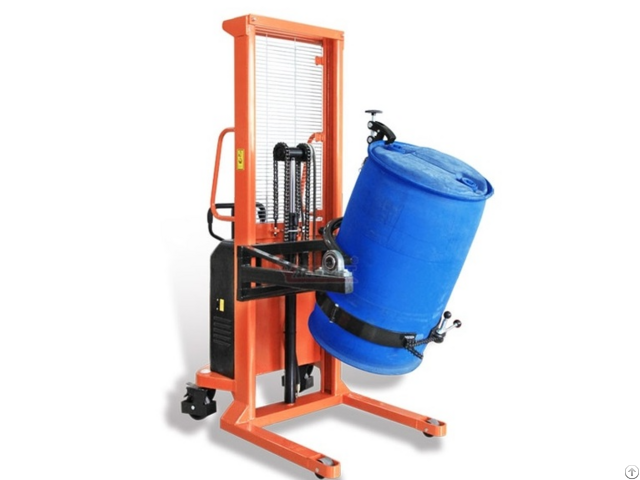

Pneumatic Dual Purpose Pourer Stacker Forklift - China

Model: STD-200-YJT Operates with or without air supply (flexible usability).

Pneumatic liquid-level lifting and dumping.

Manual override for emergencies.

Compact design for easy movement and manual operation.

Explosion-proof electronic scale interface (compatible with drums and grinding tanks).

Type: Pneumatic + Manual Integrated Tipping Machine Technical Specifications: Horizontal Position: 1420 mm from ground Vertical Position: 1300 mm from ground Rated Pressure: 0.6–0.8 MPa Working Pressure: 10–12 bar Air Hose Size: Φ600 mm Barrel Diameter: Standard international oil drum (Φ600 mm) Fixation Method: 360° rotatable clamping Lifting Mechanism: Pneumatic + manual adjustment Dimensions: 1250×950×1850 mm Customizable Options: Explosion-proof electronic scale integration.

Custom interfaces for specific barrel types (e.g., grinding tanks).

Model: STD-500CC Dual-use design: Pneumatic/manual operation (works with or without air supply).

Rated load: 500 kg (customizable for 1000 kg / 1500 kg).

Safety-enhanced design: Compact and portable (manual push/pull operation).

Anti-slip copper plates on fork contact surfaces.

Reinforced structure for stable lifting.

Type: Pneumatic Dual-Use Stacking Machine (with forks) Technical Specifications: Hose size: Φ12–16 mm Air consumption: 500–980 L/min Pneumatic (air pressure: 0.6–0.8 MPa) Manual assist (optional) Lifting Capacity: 500 kg (base model) Drive Modes: Air Supply: Lifting Height: 1400 mm Fork Width: 100 mm (max.

) Lifting Stroke: 950 mm Customizable Options: Higher load capacity (1000 kg / 1500 kg).

Fork width adjustment (based on customer requirements).
