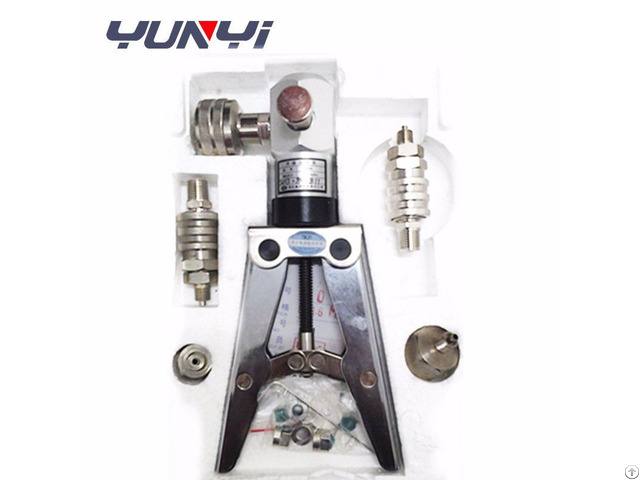

Pneumatic Pressure Test Pump Y039 - China
price: 180.00 Dollar US$
Specification of pneumatic pressure test pump :
1 - Output pressure: 0~25Mpa
2 - work environment: -20~50 ℃
3 - Temperature: 0~40℃b 4 - Relative humidity: ≤100%
5 - weight: ≤0.8Kg
6 - Table joint thread: M14 x 1.5 internal thread (exports by 1/4 NPT)
7 - High pressure hose joint thread: M20 x 1.5 internal thread (exports by 1/2 NPT)
output pressure range
Y039: 0-1.6MPa
Y061: -0.1-0MPa
Y060: -25MPa
YFP-16: -0.088~1.6MPa(-0.88~16bar )
YFP-20: -0.088~2.0MPa(-0.88~20bar )
YFP-25: -0.088~2.5MPa(-0.88~25bar )
operating temperature
-20~50C
operating relative humidity
~100%
flexible hose connector
M20*1.5 female
master gage connector
1/4NPT male
dimensions
235×120×65 230 x 110 x 60
weight
0.6kg 0.5kg
Accessories
500 mm long plastic hose and a leatherette carrying bag
Outlet threads
1/4 NPT, or to custom request
Vernier-adjuster
micro-adjustable, volume control
Company Contact:
- Posted By: Xi'an Yunyi Instrument Co,.ltd
- Phone: 17391772083
- Address: Inland Port Mansion, No.9 Gangwu Road, Xi'an International Trade & Logistics Park, Xi'an City, Shaanxi Province, China
- Email:
- Website: https://yunyiyibiao.en.alibaba.com/
Published date: June 1, 2018 - Modified date: June 1, 2018
- Business Description: Xi'an Yunyi Instrument Co., Ltd.,
specializing in Piston dead weight tester, pressure calibrator, hand test pump, Pressure gauges / transmitters, level meter , flow meter, temperature and ph instruments with more than 10 years.
