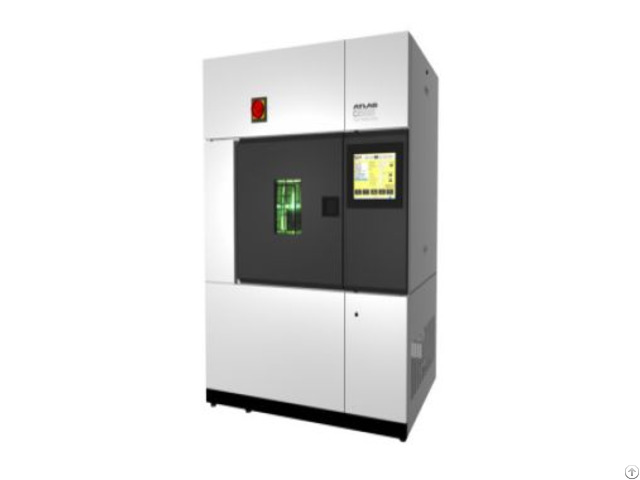

Qinsun Ci Xenon Lamp Aging Test Chamber - China

The Ci Series Weather-Ometers are the most widely used rotating rack water-cooled xenon-arc weathering testing instruments in the world.

Their large capacity and full-functional performance make these instruments the best choice for a wide variety of accelerated weathering test methods.

They offer superior irradiance and temperature uniformity within the test chamber, as well as a wide performance envelope for all weathering testing parameters.

They are commonly referenced in OEM weathering test standards and specifications.

The intuitive user interface makes operation and programming very simple.

Several revolutionary options and accessories are available to allow researchers to get the most out of their weathering testing programs.

Standards:

Standards: AATCC 16-2004 - AATCC TM169 - ISO 105-B04 - M & S C9 - M & S C9A, GB / T 8427 - Ci5000 Weather-Ometer: Atlas Ci xenon lamp aging test chamber(图1) The Ci5000 - with its advanced digital control system, represents a monumental achievement in applying digital and optical technologies in an easy-to-use laboratory weathering instrument.

The Ci5000 is approved by many OEMs in the automotive, paints & coatings and plastics industries as the exclusive platform to deliver accurate, reproducible and repeatable results for predicting service life.

The Ci5000 has been certified CE, UL, CSA, ISO and EN compliant.

Ci4400 Weather-Ometer: Atlas Ci xenon lamp aging test chamber(图2) The Ci4400 is our most advanced instrument yet, providing easy and effortless operation, unmatched uniformity, increased capacity and a sleeker design, delivering unparalleled value and performance.

Ci4000 Weather-Ometer: Atlas Ci xenon lamp aging test chamber(图3) The Ci4000 is a mid-sized xenon-arc weathering instrument.

It applies digital and optical technologies in an easy to use laboratory weathering instrument.

Ci3000+ Weather-Ometer/ Fade-Ometer: Atlas Ci xenon lamp aging test chamber(图4) The 3000 Series is approved by many OEMs in the textiles, paints & coatings and plastics industries as the exclusive platform to deliver accurate, reproducible and repeatable results.

product details:

1 - light source: 2200W air-cooled xenon lamp 2 - exposure test area: 2310cm2 3 - color touch screen control and display test parameters 4 - radiation control: 300-400 nm automatic control 5 - directly set and control the black mark temperature 6 - directly set and control the cabinet temperature 7 - directly set and control the relative humidity 8 - display test diagnostic information 9 - can store up to 10 user predefined tests 10 - multi-language user interface 11 - easy to aging filter system in line with ISO 105-B02 and AATCC TM16 standards 12 - sample rack XENOSENSIV? For measuring and controlling the level of radiation (in W / m?) And black standard temperature 13 - optional temperature control: box temperature (up to 65 ℃) or box temperature black mark temperature dual control (up to 100 ℃) 14 - the fan control black mark temperature and the difference between the box temperature 15 - integrated 60-liter water tank for humidity control and sample spray (auto fill) 16 - can be loaded with 19 sample rack test up to 38 standard textile samples (13.5cm × 4.5cm) 17 - pre-defined criteria: ISO 105 B02 and AATCC TM16-2004 (option 3) 18 - to the total exposure, light time or running time to end the test 19 - UV protection test box window 20 - advanced automatic start function 21 - built-in memory chip to store data 22 - through the RS 232 interface or memory card to transfer storage data 23 - Ethernet interface to connect the internal computer network, and XenoTouch Add-ons1 - 2 - 3 use (remote control, e-mail service, online monitoring).

Accessories:

1 - XenoCal irradiance calibration device for independent irradiance calibration and measurement at the sample plane 2 - Auxiliary filter lantern for meeting special test requirements 3 - Specimen Holders available to accommodate many sample types 4 - LiquiAirTM self-contained xenon lamp cooling system (top or wall mount available) Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China, Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience, Based on international testing standards, We are also the instrument supplier for BV SGS laboratory, We provide one-stop solutions for lab instruments, Free Training and Turn-Key Service, Products exported all over the world, Offer 36 month warranty and are a trustworthy partner.
