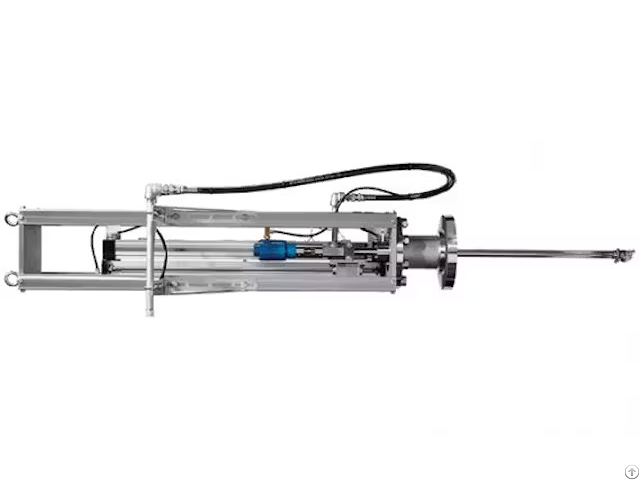

Retractable Pneumatic Tank Washer Machines - China

High impact 3D rotary tank washer

Model number: STP-450 retractable rotary tank washer Working Principle:

Impeller is driven by cleaning fluid and drives internal reduction mechanism.

Gear mechanism operates according to set track to realize the revolution and the rotation, thereby achieving 360° thorough cleaning.

Programmed rotation machines: The cleaning fluid drives via the turbine an internal gear reducer that keeps the sprayer turning in two planes.

In the course of spraying cycle, the jets sweep the entire inside surface of the tank according to the preprogrammed, model-specific pattern.

This takes a certain amount of time, but these models generate the highest jet pressures (= force of impact) and are therefore ideal for very large tanks and the toughest of cleaning tasks.

The standard machine configuration uses two or four nozzles to blast the tank walls and rinse all surfaces.

In operation, the unit has to run for the cycle time between on type 8 and 12 min depending on type and pressure.

This ensures full cleaning.

For extremely difficult applications the cleaning time might have to be extend.

Features & Benefits:

● Optimized structural design results in a water jet that produces greater impact ● Excellent sealing design, less than 3% leakage ● Independent gearbox design protects gear from damage and can work in poor water quality ● Adopt high hardness and wear resistant materials, long service life ● Customizable retractable, such as material, stroke length, spray diameter, connection, etc
