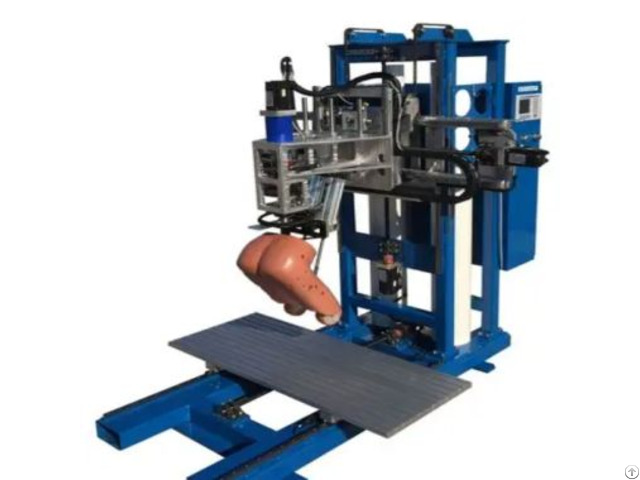

Seat Ingress Egress Simulation Tester - China

Standard

ISO 16840 (Wheelchair Seating - Test Methods for Determining Mechanical Properties) FMVSS 207 (Federal Motor Vehicle Safety Standard for Seating Systems) BIFMA X5.1 (Office Chairs - Standard Test Methods) Product Advantages

Human-Centric Simulation

Programmable motion profiles replicate diverse user demographics (height: 150–195cm, weight: 50–150kg) with ±0.5% force accuracy.

High-Speed Endurance Testing

15 Hz operation accelerates testing cycles, simulating 10+ years of seat usage in weeks.

AI-Powered Analytics

Machine learning algorithms predict wear patterns and generate ISO/ASTM-compliant reports automatically.

User-Centric Operation

15.6-inch touchscreen interface with multilingual support (English, German, Chinese, Japanese) and one-touch test protocol selection.

Modular Expandability

Interchangeable fixtures for automotive seats, office chairs, and aircraft cabins.

Product Features

Multi-Axial Motion Control

Ingress/Egress Cycles: 0–15 Hz (adjustable) with programmable seat entry/exit angles.

Weight Simulation: Pneumatic actuators apply dynamic loads (50–150kg) to mimic user movement.

Environmental Simulation: Temperature (-10°C to +50°C) and humidity (20–80% RH) control for in-use testing.

Real-Time Monitoring

High-speed cameras (500 FPS) and strain gauges capture seat deformation and upholstery wear.

Safety First

Emergency stop, overload protection, and laser-guided motion limits prevent equipment damage.

Data Management

Cloud-compatible software stores 10.000+ test cycles, with barcode scanning for sample tracking.
