Silicon Piezoresistive Pressure Sensor - China
price: contact company for price
Description pressure transmitter silicon piezoresistive pressure sensor

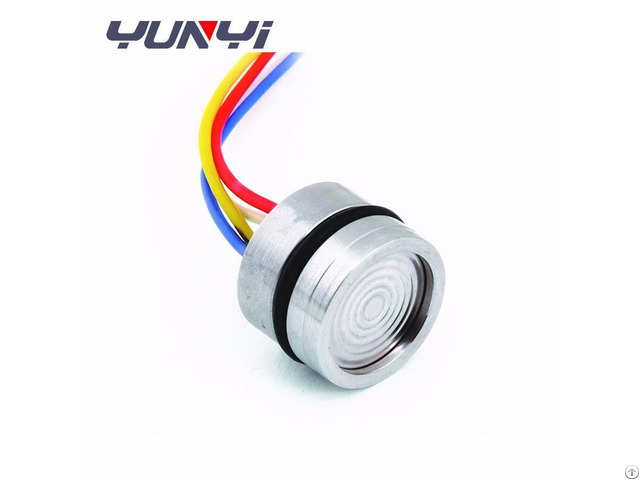

YPS-19 is 316L SS Piezoresistive Silicon Pressure Sensor, the main element is a diffused silicon with high stability.
It utilizes silicon oil to transfer pressure from 316L stainless steel diaphragm to sensing element.
The sensing element uses 316L stainless steel to packing and thick film circuit to do temperature compensation and zero correction.
It has high reliability and stability.
Detailed Images pressure transmitter silicon piezoresistive pressure sensor
pressure transmitter silicon piezoresistive pressure sensorpressure transmitter silicon piezoresistive pressure sensorpressure transmitter silicon piezoresistive pressure sensor
Specification pressure transmitter silicon piezoresistive pressure sensor
Supply : 1.5mAD Input impedance: 3KΩ~6KΩ
Output impedance: 2.5KΩ~6KΩ Insulation resistance: ≥100MΩ/50VD C
Insulation voltage: 500VAC between the housing and electrical connection will not damage
Medium compatible: liquid, gas compatible with 316L stainless steel
pressure transmitter silicon piezoresistive pressure sensor Features pressure transmitter silicon piezoresistive pressure sensor
Measurement range: 0~10KPa~100Mpa O-ring mount
High Accuracy and stability Piezoresistive silicon sensing element
Full 316L Stainless steel Applications pressure transmitter silicon piezoresistive pressure sensor
Measurement pressure of gas and liquid Petroleum exploitation
Water supply, warm supply of town Process control system
Aviation and navigation inspection Hydraulic pressure
Company Contact:
- Posted By: Xi'an Yunyi Instrument Co., Ltd
- Phone: 00862988812007
- Address: Room 1203B, Inland Port Mansion, No.9 Gangwu Road, Xi an International Trade & Logistics Park, X, Xi'an , Shaanxi , China
- Email:
Published date: March 19, 2018
- Business Description: Professional manufacturer pressure transmitter, pressure gauges, pressure calibrator and deadweight tester.
And we also develop valves, flow meter, temperature transmitter, level transmitter, densitometer etc.
They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
