Single Burning Item - China

SBI was measured supplies (excluding floorings) performance at a single burning heat invasion conditions.

Samples were placed inside the sliding flame (methane combustion sandbox boxes), under the exhaust pipe.

Sample combustion reaction condition to accept dual monitor machine and visually.

Heat and smoke release rate assessment instruments detect objects by observing performance.

The sample is placed on a mobile cart located in the exhaust system under the combustion reaction of the sample can be automatically displayed and visible.

By calculating the heat release rate (HRR), smoke release rate (SRR) to evaluate the combustion characteristics of the machinery, and other physical properties evaluated by visual observation.

SBI measurement range, the fire growth rate index (FIGRA) is the most representative measure factors; in addition, there are factors measuring oxygen consumption representative, CO/CO2 generation amount, smoke growth rate index (SMOGRA) and so on.

Maximum heat release rate can reach 1MW.

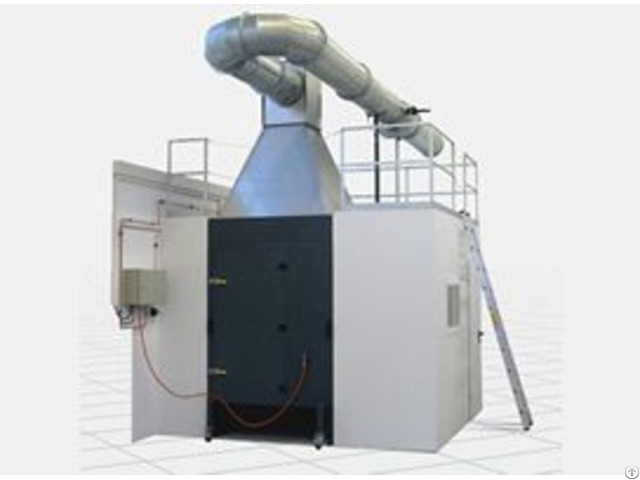

Model: FTech-EN13823 Standard BS EN 13823: a single burning instrument (SBI) Determination of building materials in the single burning heat invasion status

Features: 1, Equipment with combustion chamber, small cart, smoke pipes, gas supply systems, control systems and data processing systems;

2, Chamber dimensions: 3m*3m*2.4m, the wall is composed of stainless steel and calcium silicate board.

3, Internal fixtures are made of stainless steel.

4, J-smoke insulation pipe for piping diameter 315mm 5mm, 50mm thick heat-resistant mineral wool insulation;

5, The cart has a main burner and an auxiliary burner, the size of which is an isosceles triangle with a side length of 250 mm.

6, The density of calcium silicate plate is 800150 kg/m and the thickness is 123mm.

7, Smoke extraction capacity: 0.50m3/s0.65 m3/s;

8, The range of the imported pressure sensor is 0~100pa, the precision is 2pa, and the response time of 90% of the output of the sensor is up to 1 s.
