Stainless Steel Cylinder Cleaning System - China

Stainless Steel Industrial Cylinder Cleaning Line (Also Known as Cylinder Cleaning Production Line)

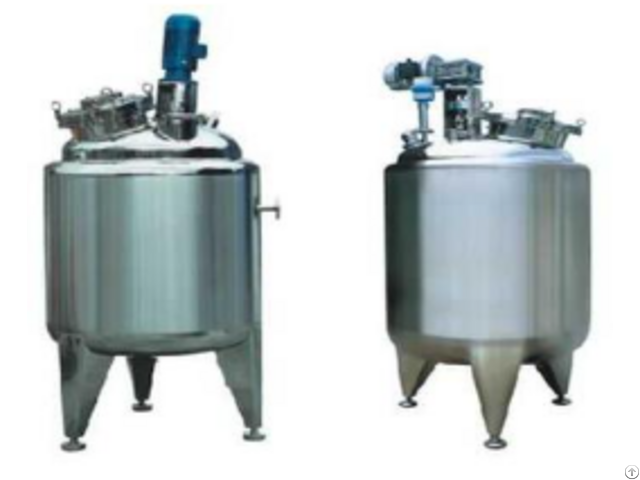

This automated production system specializes in cleaning three-dimensional mixing tanks, mobile cylinders, transfer cylinders, and circulation cylinders.

The fully automated process integrates electric-hydraulic controls, high-pressure water jets (20-500 kg/cm²), and multi-axis brush systems to achieve 360° residue removal.

Operator supervision is required for process monitoring and auxiliary operations during automated cleaning cycles.

Cleaning Station Configuration

1 - Loading Position 2 - 180° Flipping Mechanism 3 - Internal Scraping & DMF Spraying Station 4 - High-Pressure Internal/External Cleaning Module 5 - Water Removal & Drying Section 6 - Flip Positioning Station 7 - Unloading Position Automated Cleaning Workflow

1 - Manual loading into position with open-end facing up (sensor activation) 2 - 180° flipping transfer to transition conveyor via hydraulic flipper 3 - DMF high-pressure cleaning cycle: Pump station pressurizes solvent (20-500 kg/cm²) → Rotating cleaner enters cylinder → Internal cleaning → Solvent returns to waste liquid collection system 4 - Freshwater cleaning phase: Internal high-pressure rinse (35 MPa) + External 360° rotating spray cleaning 5 - Drying process: Steam-heated airflow achieves 95% moisture removal rate 6 - Intermediate positioning for process synchronization 7 - Final 180° unloading flip via pneumatic clamping system 8 - Manual consolidation of cleaned cylinders Key Technical Features

1 - DMF solvent recovery system with 92%+ reclamation efficiency 2 - Multi-stage filtration (5μm particulate removal) 3 - Explosion-proof PLC control cabinet (ATEX Zone 1 certified) 4 - Thermal imaging system for temperature monitoring (30-80°C range) 5 - Automatic pressure balance with ±0.5 bar tolerance
