Surface Roughness Gauge - China

Surface Roughness Gauge

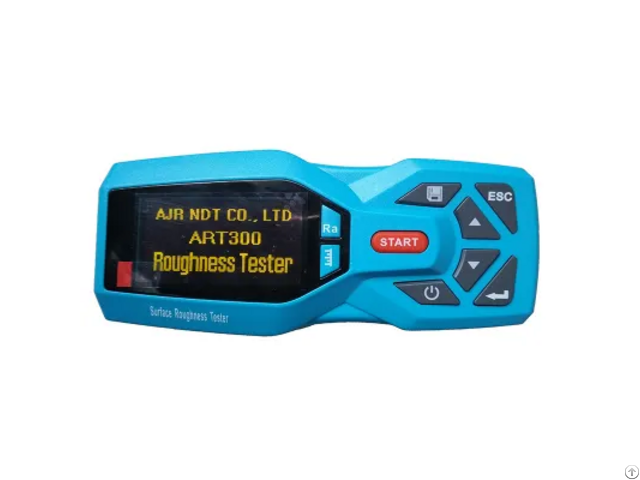

Delve into the world of precise surface finish measurement with AJR's state-of-the-art Art300 Surface Roughness Gauge.

As a leading roughness gauge manufacturer, AJR brings you a product that epitomizes accuracy and reliability, ensuring that your surface finish evaluation is nothing short of exceptional.

ART300 measurement meets international standards of the United States, Germany, Japan and is compatible with Britain and other industrial developed country standards.

Measurement results can be shown on digital LCD display.

The result can be also output to the printer.

The Art300 Surface Roughness Gauge is meticulously designed to cater to a wide range of industries, including automotive, aerospace, and manufacturing, where the quality of the surface finish plays a critical role in product performance and longevity.

This versatile roughness gauge offers unparalleled functionality, making it an indispensable tool for engineers, quality inspectors, and machinists alike.

Surface Roughness Gauge Functions and Features

● Electromechanical integration design, small volume, light weight, easy to use;

● Using DSP chip to control and data processing, high speed, low power consumption;

● Large range, parameters Ra; Rz==Ry (JIS); Rq; Rt==Rmax; Rp; Rv; R3z; R3y; Rz(JIS); Rs; Rsk; Rku; Rsm; Rmr; RPc; Rk; Rpk; Rvk; Mr1; Mr2

● 128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;

● Display information rich, intuitive, can display all the parameters and graphics;

● Compatible with ISO, DIN, ANSI, JIS national standards;

● Built-in lithium rechargeable battery and a charging control circuit, high capacity without memory effect;

● Residual battery quantity indicator icon can reminder user to charge and understand the battery charging degree.

● Machine can work more than 20 hours continuously

● Large capacity data memory, can store 100 groups of original data and waveform.

● Real-time clock settings and display, convenient data recording and storage

● Low power consumption design.

● Reliable circuit and software design can avoid system halted.

● Measurement display, menu prompt information, incorrect information and switch machine information and other tips information;

● ART300 can be connected to a computer and printer;

● Various optional transducers, measuring platform, mini printer, extension rod and other accessories.

● Plastic shell, inspired by "TRANSFORMERS" stylish design, portable, high reliability.

● Optional bluetooth function.

Invest in AJR's Art300 Surface Roughness Gauge Set and experience unparalleled quality in your surface finish evaluation.

Whether you are a seasoned professional or a newcomer to the field, this gauge is the perfect addition to your NDT arsenal.

Get a quote now!

Surface Roughness Gauge Technical Parameters

Item Specification

Product Model ART300

Testing parameters Ra; Rz==Ry (JIS); Rq; Rt==Rmax; Rp; Rv; R3z; R3y; Rz(JIS); Rs; Rsk; Rku; Rsm; Rmr; RPc; Rk; Rpk; Rvk; Mr1; Mr2

Measuring range (um) Ra: 0.005-16.000, Rz: 0.02-160.00

Sample length (mm) 0.25, 0.80, 2.50

Evaluation length(mm) (1-5)L

Maximum drive stroke 17.5mm/0.7inch

Indication accuracy 0.001

Indication error ±(7-10)%

Variability <6%

Data Storage 100 groups

Power Rechargeable li-battery

Working temperature -20℃～40℃

Relative humidity <90%

Size 158mmx63.5mmx46mm

Weight of Host 0.3kg
