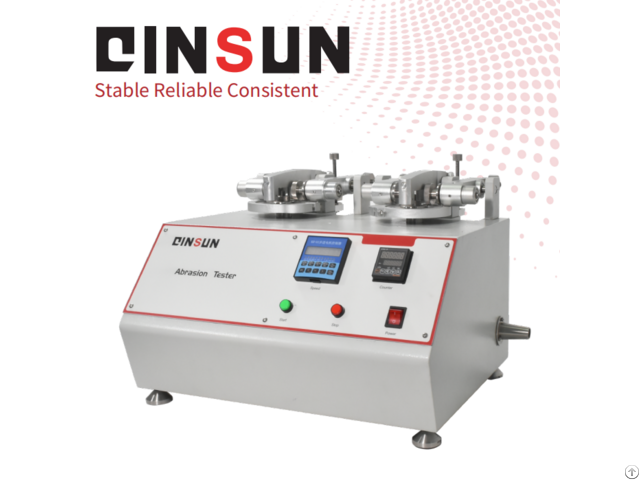

Taber Abrasion Tester Double Head Qinsun - China

Taber Abrasion Tester (Double-Head)-QINSUN Standards DIN Standards: DIN 53754 (plastics), DIN 53109 (paper/board), DIN 52347 (glass/plastics)

ASTM Standards: ASTM D1044 (transparent plastics), ASTM D3884 (textiles), ASTM D4060 (coatings)

ISO Standard: ISO 5470 (rubber/plastics-coated fabrics)

TAPPI Standard: TAPPI T476 (paper/paperboard abrasion)

Product Advantages Dual-Testing Efficiency: Simultaneous testing on two independent stations doubles productivity, ideal for high-throughput laboratories.

Wide Applicability: Suitable for luggage, carpets, automotive interiors, textiles, coatings, metals, electronics, and more.

Precision Engineering: Adjustable pressure settings (125–1250g per wheel) and digital speed control (30–75 RPM) ensure standardized testing.

User-Centric Design: Intuitive LCD interface with preset cycle counts (1–999, 999 revolutions) and vacuum debris removal for accurate results.

Versatile Compliance: Meets ASTM's dual-head method requirements and global industry standards.

Quiet Operation: Branded silent motor minimizes noise during extended testing sessions.

Product Features Dual Testing Stations: Independent control of two abrasion heads for parallel testing or comparative analysis.

Digital Control Panel: Real-time speed display, adjustable RPM, and programmable cycle counters with automatic stop.

Adjustable Vacuum System: Height-customizable suction port adapts to material thickness, ensuring debris-free testing.

Modular Abrasion Wheels: Interchangeable wheels (e.g., CS-10, H-18) and sandpaper discs for material-specific wear simulation.

Precision Balancing: Rear-arm counterweights (250g, 500g, 750g, 1000g) enable ASTM-standard 125g pressure and beyond.

Sample Preparation Kit: Includes sample stickers, diamond polishers, and vacuum attachments for seamless workflow.

Technical Parameters Parameter Specification

Rotational Speed 30–75 RPM (digital adjustment)

Sample Diameter 100 mm (per station)

Test Platform Diameter 113 mm (per station)

Cycle Range 1–999, 999 revolutions (presettable)

Empty Arm Pressure 250g (standard)

Weight Options 250g, 500g, 750g, 1000g (included)

Wheel Pressure Range 125g, 250g, 500g, 750g, 1000g, 1250g (per station)

Vacuum Arm Adjustment Height-adjustable (per station)

Power Supply 220V, 50Hz

Dimensions 220 (W) × 380 (D) × 300 (H) mm

Net Weight 20 kg
