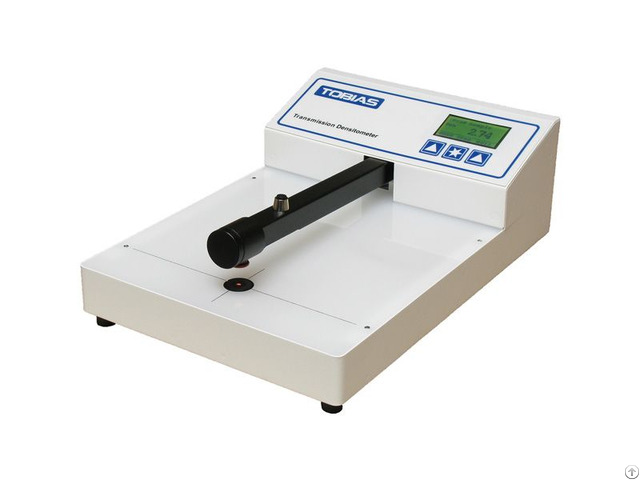

Tbx1000c Color Transmission Densitometer - India

price: 3057.00 Dollar US$

The TBX1000C insures consistent process control in the manufacturing of films, laminates, and substrates.

It measures density and density difference of either color or black and white substrates.

Single-Step measurement of Color, UV, or IR Transmission Optical Density

The TBX1000C(tm) Color Transmission Densitometer insures consistent process control in the manufacture of films, laminates, and substrates.

The TBX1000C, with Status A (Status M on request), measures density and density difference of either color or black & white substrate with a great degree of accuracy and precision.

Status A is used for reading positives, such as transparencies and prints.

Status M for reading negatives.

The unit has the capability of reading up to three color filters, plus visual.

Custom filter set, including for measuring infrared and ultraviolet, can be used.

The different filters are easily selected by rotating the knob at the end of the probe.

The unit has both an absolute mode and a relative mode, which can be used for comparing the measured values to a previously stored value for consistent process control.

Transmission Densitometer/Opacity Meter measures and calculates percent opacity, percent transmission, and transmission optical density.

There is no more need to figure the percentages manually.

The unit has been designed for user convenience and error-free measurement.

The data can be uploaded to a spreadsheet via the USB port using an optional data transfer program (p/n A2128).

Measures density and density difference

Use for color or black & white substrates

Soft key menu operation

7.5 inch throat to measure large samples

Accurate repeatable readings

Software Calibration

Switchable LED table lamps

Takes RGB readings using Status A filter set

Status M and custom filters upon request

Easy selectable filters

USB port

Data capture program available.

Company Contact:

  • Phone: 9004447883

  • Address: Office no. 1613, 16th floor, Solus, Hiranandani Estate, Ghodbunder Road , Thane , MAHARASHTRA , India

  • Email: Email

Published date: January 7, 2022

  • Business Description: Energid Instruments is a leading supplier of scientific and laboratory instruments in India.

    Headquartered in Mumbai, Energid Instruments, has today established itself as among the most prominent player in the industry owing to its devoted service and commitment to customer satisfaction.
