Transformer Insulation Oil Dielectric Strength Test Kit - China
price: contact company for price

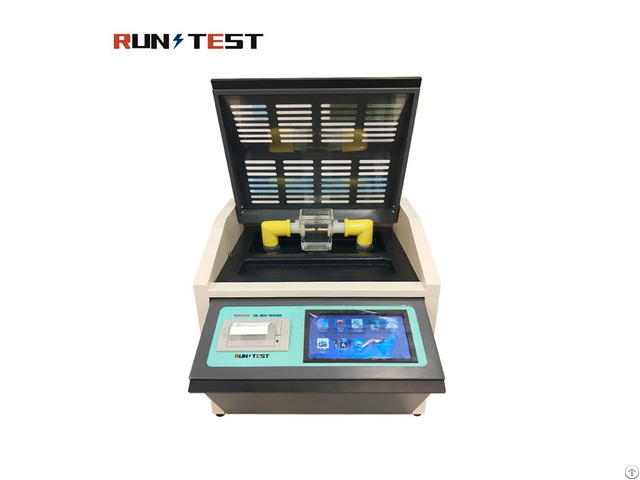

2 - Breakdown Voltage Bdv Tester
Item: RUN-BDV80D
This model of dielectric strength tester for insulating oil uses of automatic digital microcomputer control, so the measurement accuracy is high, anti-interference ability is strong, safe and reliable.
Easy to operate and beautiful in shape
Output voltage: 0～80KV (100KV optional)
Quality control and one year warranty
0-80KV Automatic Transformer Oil Dielectric Strength Insulating Oil Breakdown Voltage Bdv Tester
Specification of this Bdv Oil Tester
1 - Booster capacity 1.5 KVA
2 - Step up speed 0.5kv/s-5.0kv/s (increasing every 0.5) 10 gears optional Error 0.2kv/s
3 - Output voltage 0-80 kV (optional)
4 - Voltage accuracy (2% reading + 2 words)
5 - Power distortion rate < 1%
6 - Electrode gap standard 2.5mm
7 - Test times 6 times (1-9 times optional)
8 - Static release time 900s (0-9000 s optional)
9 - Interval rest time 300s (0-900s optional)
10 - Mixing time 15s (0-250s optional)
11 - Overall dimension: 650mm × 470mm × 410mm
12 - Instrument weight 42 kg
13 - Ambient temperature 0-40 ℃
14 - Relative humidity ≤ 85%
15 - Working power AC 220V (1 ± 10%)
16 - Power frequency 50 Hz (1 ± 10%)
17 - Power consumption < 200 W
Company Contact:
- Posted By: Run Test Electric Manufacturing Co., Ltd
- Phone: 86 18500313863
- Address: Building 4, Dongrun Science Park, High-Tech Zone, baoding , hebei , China
- Email:
- Website: https://www.voltage-tester.com/
Published date: May 7, 2025
- Business Description: RUN-TEST electric company has the most professional technicians to answer your questions about the test equipment.
Certified certificate to give you trust.
24-hour online service to meet your needs.
Our goal is to use our electric testing equipment to make your work more effective and safer.
