Vacuum Transmitter - China

price: contact company for price

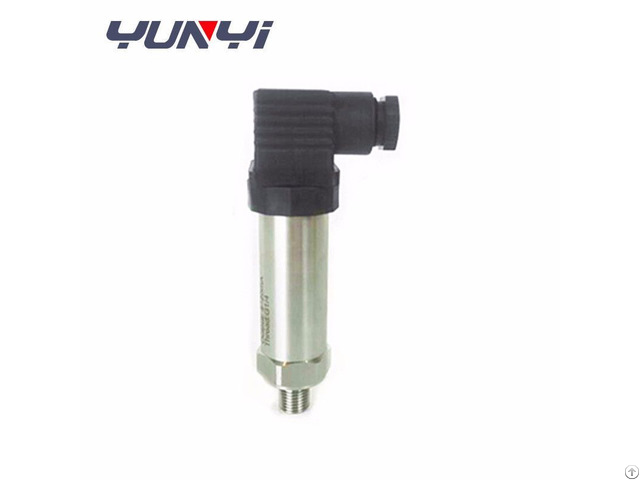

Vacuum Transmitter

Products Photos Catalog Vacuum Transmitter Photos Catalog

vacuum transmitter

Range: -0.1 ~ 100 (MPa)

Comprehensive Accuracy: 0 .

1% 0.25% FS, 0.5% FS, 1.0% FS

Output signal: 4 ~ 20mA (two wire), Site display: LED three half 0000 - 1999

Supply voltage: 24DCV (9 ~ 36DCV)

Medium temperature: -20 ~ 85 ~ 150 ℃

Ambient temperature: room temperature (-20 ~ 85 ℃)

Load Resistance: Current Output: Maximum 800Ω; Voltage output: more than 50KΩ

Insulation resistance: more than 2000MΩ (100VDC)

Sealing Rating: IP65

Long-term stability: 0.1% FS / Year

Vibration: Mechanical vibration frequency within 20Hz ~ 1000Hz, output changes less than 0.1% FS

Electrical connection: Hirschmann connector

Threaded connection: M20 × 1.5, etc., other threads can be designed according to customer requirements

Dimensions: M20 × Φ26.5 × 175


Company Contact:


  • Phone: 00862988812007

  • Address: Room 1203B, Inland Port Mansion, No.9 Gangwu Road, Xi an International Trade & Logistics Park, X, Xi'an , Shaanxi , China

  • Email: Email

Published date: June 4, 2018

  • Business Description: Professional manufacturer pressure transmitter, pressure gauges, pressure calibrator and deadweight tester.

    And we also develop valves, flow meter, temperature transmitter, level transmitter, densitometer etc.

    They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
