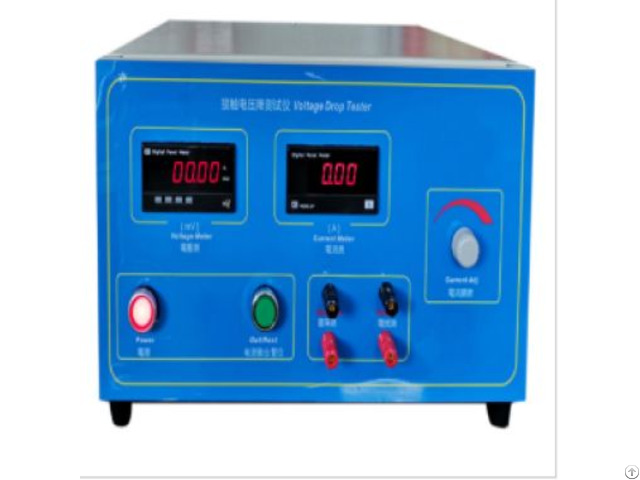

Voltage Drop Tester For Automotive Wire Connectors - China
price: check with company for price
Technical Features: This instrument features adjustable high - current output, micro - voltage testing, and digital tube display.
Main Parameters: 1 - Input voltage: AC220V + 10%, 50Hz
2 - Working current (DC): 0 - 100A (optional values including 5A, 10A, 20A, 50A, 100A, 200A, 500A, 1000A) and can be adjusted arbitrarily
3 - Current output mode: Constant current
4 - Voltage drop range: 0 - 20V (with three voltmeters of different accuracies for 0 - 200mV / 0 - 2V / 0 - 20V).
The display ranges are 0.01 - 199.99mV / 0.1 - 1999.9mV / 1 - 19999mV respectively
5 - Power: 3200W, maximum output voltage: 32V
Company Contact:
- Posted By: Standard International Group (HK) Limited
- Phone: 18326093791
- Address: 280 Jiugan Road, Songjiang district, Shanghai , Shanghai , China
- Email:
- Website: https://standards-groups.com/
Published date: October 21, 2025
- Business Description: Standard Groups is an integrated supplier specialized in providing material test instruments and “The Whole Laboratory Program” solutions.
The main products cover many areas: Textile and Apparel, Leather and Footwear, Flammability Testing, Filter Material Testing, Automotive Interior, Toy Testing, Non-woven and Geo-membrane, Carpet Testing, Luggage/Furniture/Office Furniture Testing, Material and Parts of Automotive, Weathering and Light Stability Testing, Ovens and Environmental Testing Chambers, Salt Fog Chambers, Materials Testing Machines, 3D Body Scanning and Manikin, Air Quality Monitoring and Measurement, Package Material Testing, Electrical Safety Testing, Optical and Spectroscopy Instruments, Lighting and Color Assessment, Microscopy and Legal Inspection, and relative testing services.
