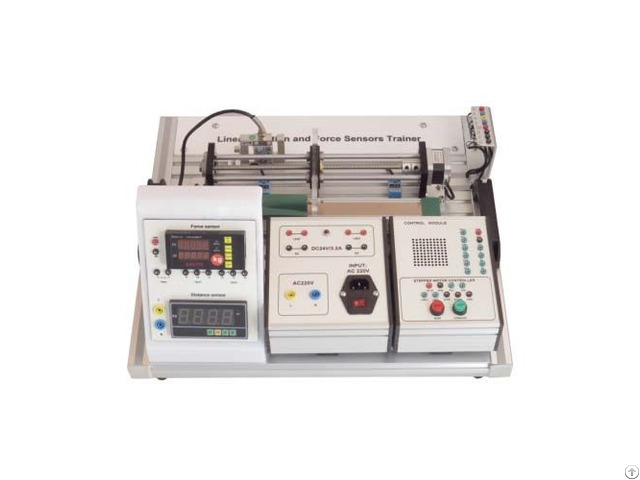

Ze3425 Linear Position And Force Sensors Trainer - China

I.

Product Overview

1.1 Overview

The training device is mainly an integrated equipment mechanical platform for electromechanical equipment composed of step -by -wire sliding platform, electrical switch, stepping motor controller, step motor drive, power module, position sensor, force sensor, etc.

Through relevant experiments, the operating characteristics of the step -by -step motor control system can be familiar with the operating characteristics of the stepper motor control system, and the corresponding knowledge and skills of students can be cultivated.

It is suitable for teaching and skills training for high vocational, college, secondary vocational schools, and related majors in technical schools.

1.2 Features

(1) The training table uses an aluminum alloy substrate to build a training platform with a bottom foot with a solid structure.

The modules of each execution agency are placed on the substrate, which is convenient to use and is not easy to damage.

(2) The control unit adopts the hanging mode.

The power supply and input and output points of the controller are drawn to the panel through the safety terminal.

The experimental wiring is connected by the 2mm test cable, which is safe and reliable.

(3) Organic integration of technologies such as mechanical technology, sensor technology, step motor movement control, which reflects the characteristics of the production process of modern manufacturing.

The overall structure adopts an open and disassembly type, which can easily replace the module, and determine the module content in accordance with the principles of productive functions and integration learning functions, so that the modules that can be easily selected during teaching or competition can be conveniently selected.

(4) The training assessment device can also be controlled through PLC to achieve a variety of control methods of step motor.

II.

Performance Parameter

(1) Input power supply: single -phase three -line system 220V ± 10% 50Hz

(2) Standard size: 500mm × 460mm × 180mm

(3) The capacity of the whole machine: <1.0kva

(4) Weight: <100kg

(5) Working conditions: ambient temperature -10 ℃ ～+40 ℃ relative humidity <85%(25 ℃)

III.

Completable Training Content

Experiment 1 Step motor understanding and debugging

Experiment 2 Step motor and drive controller wiring

Experiment 3 Step motor automatic round -trip mode experiment

Experiment 4 Force sensor control experiment

Experiment 5 Distance sensor measurement displacement experiment
