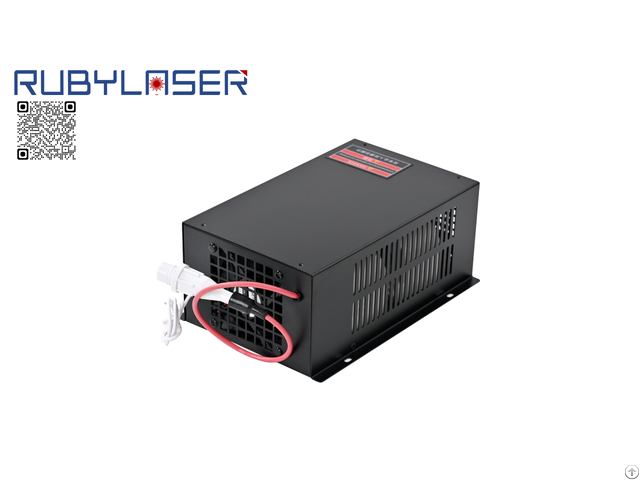

Spare Parts 100w Co2 Laser Power Supply For 140 145cm Carbon Dioxide Glasstube - China

Specification

Input

Input voltage

AC220V±10%

(AC110V specified while order)

AC frequency

47~440HZ

Maximum input power

770W

Maximum input current

3.5A

Output

Maximum output voltage

35KV

Maximum output current

33mA

(depending on the laser tubes of different manufacturers)

Efficiency

More than 90% (Full load)

Response speed

Less than 1ms

Control interface

TTL multilevel switching control, effective level can be high and low selection (see control wining diagram)

Insulation

input-output

AC 1500V 1 minutes not more than 10mA

input-shell

AC 1500V 1 minutes not more than10mA

Output-shell

Connection

Open Circuit Protection

Can be short circuit (requires a good grounding shell, while avoiding the positive electrode and the shell between the arc)

Environmental Requested

Working temperature

-10ºC~50ºC

Relative Humidity

Maximum 85%RH (non-condensing)

Dimensions (LxWxH)

230mmx142mmx95mm

Product Details

Laser Spare Parts 100W CO2 Laser Power Supply for 100W 140/145cm CO2 Laser Tube

•Precise Power Control:

Supports 0–5V analog or PWM input for accurate laser power adjustment.

•Standard Interface Design:

Equipped with H/L/P/G/IN/5V control ports and a durable aluminum casing with galvanized steel base.

•Flexible Signal Compatibility:

Accepts high/low and TTL-level signals for easy laser on/off control with built-in protection for water flow and ventilation.

•Wide Laser Tube Compatibility:

Suitable for most 1400–1450mm CO2 laser tubes (EFR, SPT, Yongli, Weiju, etc.

).

Utilizes a zero-current half-bridge soft-switch circuit for high efficiency and fast response.

•Cooling & Easy Diagnostics:

•Equipped with single cooling fans(The use of silicon carbide reduces power supply's heat dissipation) and a RED TEST button for quick Easy Fault Diagnosis: RED TEST button allows quick identification of power supply or laser tube faults for faster troubleshooting.

•Rigorous Quality Testing:

Each unit undergoes a 10-hour full-load aging test at 60°C and 500 on/off cycles to ensure stability and reliability.

•Comprehensive Protection:

Grounded design with open-circuit protection prevents damage during short-term operation in open-circuit conditions.

•Customizable Display Options:

Standard single-channel LCD module; optional 4- or 8-channel configurations available.

•Advanced Silicon Carbide Technology:

Provides high efficiency, low heat generation, and exceptional reliability for continuous operation in high-temperature environments.

•Optimized Circuit Design:

Reduced circuit complexity minimizes failure rates and ensures consistent output for superior engraving and cutting quality.

•Automated Production Process:

SMT assembly and HD camera inspection guarantee precision manufacturing and consistent quality.

•Improved Safety:

Silicone-wrapped HV cable prevents electrical discharge and ensures safe operation in humid environments.

•Optional Voltage Stabilizer:

Compatible with 90–270V stabilizers for enhanced performance and protection.

•WX means it supports LCD display screen

•Optional LCD Display Module:

Displays output current, working status, and fault codes.

Includes a rotary potentiometer for convenient output adjustments.

Optional LCD Display

An optional external LCD display is available to provide real-time visibility of operating current, system status, and fault diagnostics.

The display is equipped with a rotary control knob that allows users to conveniently and precisely adjust the output current.

The standard configuration supports a single control channel, while 4-channel and 8-channel versions are available for applications that require multi-channel monitoring or centralized control.
