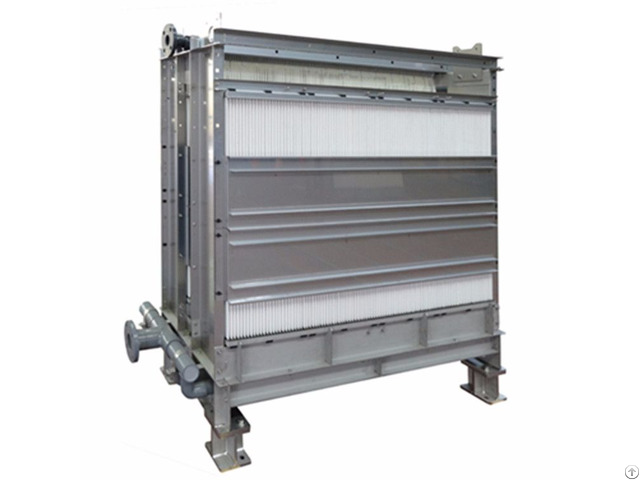

Flat Ceramic Membrane - China

Flat Ceramic Membrane is an asymmetric Membrane formed by the preparation of inorganic Ceramic Membrane materials.

The tube wall of Flat Ceramic Membrane is covered with micro pores, under the action of pressure, the material fluid flows through the membrane tube or the outer membrane of the membrane, and the small molecule (or liquid) through the membrane, the macromolecular substance (or solid) is trapped by the membrane.

Thus, it achieves separation, concentration, purification and environmental protection.

Working principle Characteristic High reliability and long service life

High mechanical strength and high temperature resistance, the service life is more than 5 times of organic film.

Small space occupation

High throughput enables the ceramic membrane to save more than 50% of the surface area of the membrane compared with the organic material Easy to maintain and green environmental protection

Using the automatic membrane cleaning, backwashing or online medical cleaning, the use of ceramic membrane can be recycled, used to manufacture other ceramic products, reduce waste, green environmental protection.

energy conservation

The structure of the plate can be cleaned with automatic film surface.

The MBBR membrane bioreactor needs low gas washing capacity and saves a great deal of energy consumption.

High hydrophilicity, energy consumption.

Stable performance

High strength film surface and high corrosion resistance, it is very suitable for separation of hard substances in water and solvent containing wastewater treatment.

Advantages comparison of flat ceramic membrane

Membrane species Plate hollow fiber

Texture of material Ceramics PVDF PE PVDF

stable operation +++

Automatic cleaning of film surface + online cleaning

It can restore permeability ++ ++

Service life 5-15 years 3-8 years 3-7 years

Operation cost +++

Energy consumption reduced by 50% ++ ++

Maintenance mode +++

Automatic cleaning and on-line cleaning of membrane surface ++

Automatic cleaning and on-line cleaning of membrane surface +

Clean without effect

Occupying space ++

It has high throughput and less land occupation + +++

Small footprint

Cyclic utilization +++

Direct recycling _

Recycling after incineration _

Recycling after incineration Advantage:

Excellent filtration quality

Long life (greater than 10 years)

High throughput

Low floor area, simple design

High chemical stability

High recovery rate

Due to high chemical stability and low dose of chemicals

Usage makes operation and maintenance become

Specification of membrane

Membrane type Flat-sheet Membrane

Filtration Out-in Filtration

Pore Size 0.1μm(Can be customized)

Dimensions(L*W*T) 1000*250*6mm

Weight(dry) 1.9kg

Membrane area 0.5㎡

Particle Removal ≥95%(for >100nm particles) Operating PH 2-12

Max Operating Temperature 60℃ Specification of components

type 2.5㎡ 25㎡ 50㎡ 100㎡ 200㎡

Length* width * height (mm) 456*367*855 1010*320*1800 1720*320*1800 1720*720*1800 1720*720*3250

Number of membrane elements(pc) 10 50 100 200 400

Weight(kg) 22 200 310 680 1280 WATER PURIFICATION

Characteristic Weather resistance with sand filtration and filtration accuracy of organic membranes

Hydrophilic materials - high throughput

Anti blocking - membrane charge

Corrosion resistance - ceramic materials

Useful life - ultra high physical and chemical stability

Concrete application

Groundwater

Removal of Fe, Mn, As and other solid suspensions (SS)

surface water

Removal of algae, bacteria, and other solid suspended solids (SS)

DOMESTIC SEWAGE

Characteristic

A simple stack of membranes can increase processing power

A variety of cleaning options include washing, gas washing, and medicine washing

The life of membrane group is more than 10 years

Compact design, suitable for a wide range of work

Concrete application

Municipal sewage; aquaculture wastewater; waste leachate INDUSTRIAL WASTE WATER

Characteristic

Ceramic membranes are widely used in various industrial water treatment applications.

For example, front end pretreatment as reverse osmosis or nanofiltration.

The new generation of ceramic film will make the limited maintenance and operation life greatly increased.

In addition, it can operate in different environments, such as corrosive agents, solvents, polymers, oxidants and the presence of strong acids

Durability is also manifested in higher backwashing frequencies and the ability to withstand periodic high load sludge up to 50.000pp of the work environment.

Because of its high flux recovery, high pressure cleaning and backwashing, and extreme chemical conditions, the membrane has a high flux recovery rate.

Ceramic membranes have the highest membrane flux in all membrane materials, so it also has the most floor space.

Specific applications (major application areas)

Producing water, oil and gas

Three stage treatment

Reverse osmosis pretreatment

Metalworking industry

Food and beverage

Semiconductor industry, pharmaceutical industry, etc.
