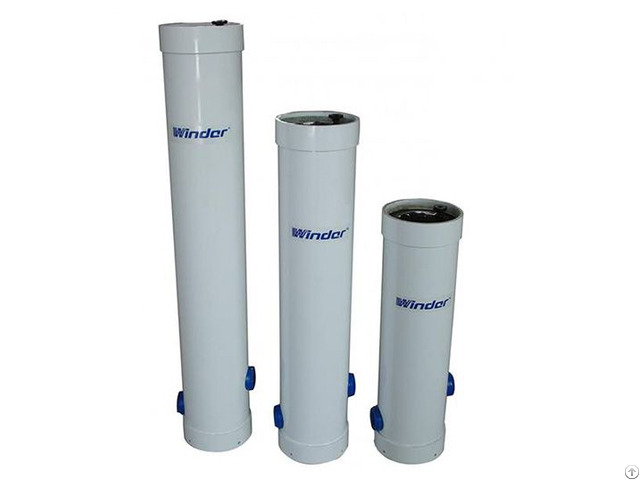

Frp Precision Filter Housings Gl5 20 30 40 - China

Winder® FRP pressure vessel is a patent product which adopted the material, technology and structure of FRP membrane housing.

It is usually settled before a pressure vessel to wipe out fine particles with turbidity higher than 1 to satisfy the water input requirement in the following procedure.

Sometimes settled at the end of the entire water system to prevent these small particles enter the finished water and damaging the membranes.

FRP pressure vessel supplier:

Features

•Composite construction with high strength

•No rusting, anti-oxidation & aging

•Reliable operation

•easy installation, Reliable Operation

•Beautiful configuration

•Accessories design optimization

Specification of FRP Precision Filter

Model No.

Diameter

(mm) Height

(mm) Connection Feed/Concentrate Port Size Pressure (PSI) Water Flow (T/H)

5E20" 200 780 Side entry DN40/1.5" NPT ≤ 1.0MPa 5.0

5E30" 200 1034 Side entry DN40/1.5" NPT ≤ 1.0MPa 7.5

5E40" 200 1288 Side entry DN40/1.5" NPT ≤ 1.0MPa 10.0 · ice life

Specification

Material: Fiberglass and epoxy.

Type: 5E20", 5E30", 5E40".

Process: Winded.

Color: Original, blue, yellow, fruit green or customized

Package: Use wooden box package or rigid cardboard package

Applications

Winder FRP Precision (Security) filters are widely used for:

•Production of drinking & domestic water

•Electronics

•Printing, dyeing & textile

•Alcohol & pharmaceutical filtration

•Acid & alkali filtration

•Desalination & RO membranes pre-filtration
