Resin Filter Media Traps - China

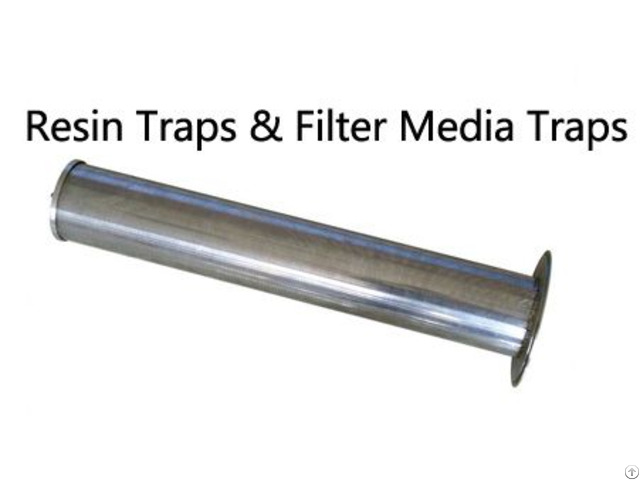

Resin Trap – A Safety Device for Resin Systems

In any advanced water treatment system, the uncontrolled release of ion exchange resin or filter media can be disastrous.

A sudden failure in a nozzle or underdrain system can send media particles downstream, clogging spray nozzles, fouling heat exchangers, and causing catastrophic damage to sensitive and expensive equipment.

This leads to costly downtime, complex repairs, and compromised process integrity.

A Resin Trap is your essential safety device and the most cost-effective insurance policy against these risks.

Strategically installed, it acts as a final line of defense, safeguarding your entire downstream process.

Resin Traps Filter media Trap for ion exchange How Do Resin Traps Work and Where Are They Installed?

Essentially, a resin trap functions as a robust, precision-engineered in-line strainer.

Its primary purpose is to intercept and capture any escaping ion exchange resin, activated carbon, or other filter media before it can travel further into your system.

Optimal Placement: For maximum protection, resin traps should be installed directly on the outlet pipelines of all media-containing vessels, including: Ion Exchange (IX) Columns (Softeners and Demineralizers) Activated Carbon Filters Other Media Filtration Systems Many of our resin traps feature robust, transparent housings, allowing operators to effortlessly monitor for any signs of media leakage or debris buildup, enabling proactive maintenance and preventing major system issues.

Key Advantages of Installing a Resin Trap

Prevent Costly Media Loss: Secure your valuable ion exchange resin and filter media, preventing expensive replacement and recharge cycles.

Protect Downstream Assets: Shield critical components like pumps, valves, and processing equipment from abrasive damage and clogging, extending their service life.

Ensure System Integrity: Avoid cross-contamination of processes and guarantee the quality of your treated water by capturing any errant particles.

Fully Customizable Solutions: We engineer each resin trap to meet the precise demands of your application, ensuring optimal performance and a perfect fit.

Engineered for Durability and Performance

We understand that every system is unique.

That's why we offer extensive customization options to build a resin trap that perfectly matches your operational requirements.

Material Selection: Choose from premium-grade materials selected for their exceptional resistance to corrosion, acids, alkalis, and high temperatures: Stainless Steel: 304/304L, 316/316L Durable Plastics: PVC, CPVC, and other specialized polymers Precision Filtration: Our wedge wire screen internals are available with slot sizes ranging from 3 mesh to 400 mesh (approx.

50 to 500 microns), providing the precise level of filtration needed to capture your specific media without impeding normal flow.

Seamless Integration with Your System

Our resin traps are designed for straightforward installation into new or existing pipework.

Flanged Connections: Ideal for industrial applications, typically standard on our 3″ and larger stainless steel models.

Stub-End Connections: Pre-installed pipe lengths allow for easy welding or coupling into your existing pipeline.

Threaded Connections: A simple and reliable option for smaller lines, enabling quick screw-in installation.

Critical Installation Advisory: Do Not Use on Backwash Lines It is crucial to avoid installing resin traps on backwash lines.

A resin trap is designed to capture media, and in a high-flow backwash scenario, it will quickly clog.

This creates significant back pressure, which can prevent the proper brine draw and regeneration of water softeners, leading to drastically reduced efficiency and potential damage to the system.

wedge wire Resin Traps for water treatment Partner with YUBO for Reliable Filtration Solutions

Don't leave your critical systems vulnerable.

Secure your water treatment process, protect your equipment, and prevent unexpected failures with a custom-engineered resin trap from YUBO, a leading stockist and manufacturer of filter nozzles and resin traps in China.

Contact our specialists today to discuss your specific requirements or to request a quote.
