Water Milk Analog Magnetic Flow Meter Price Electromagnetic Flowmeter - China

Water Milk Analog Magnetic Flow Meter Price Electromagnetic Flowmeter

Wastewater Flow Meter, Mechanical Smart Electromagnetic Flowmeter

Quick Details:

Place of Origin Henan, China (Mainland) Brand Name WEILI Model Number MGG

Product Name MGG Medium Corrosive Accuracy 0.5%

Power supply 220VAC/ 24VDC Output 4-20mA /RS485 Application Measuring Liquids

Connection Thread Material Stainless Steel Type Integral Product Description:

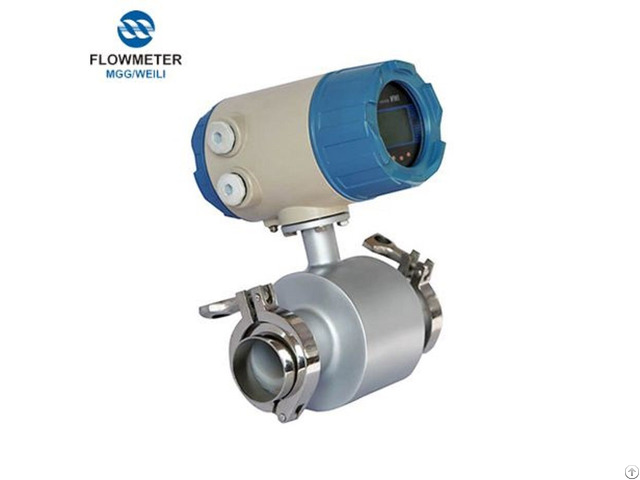

Magne W3000 PLUS Sanitary Centrifugal type Electromagnetic flowmeter adopting new sanitary centrifugal liner and technology, which is in line with the food industry hygiene requirements, At the same time, its stainless steel shell connected with stainless steel clamp, easy to remove and clean, so that the flowmeter can not easily be contaminated in using process and applied in food manufacture processing of Mineral water, soy sauce, jam, beer, fruit juice, rice, milk, etc and Health and chemical industry .

Nominal Bore DN10～DN300mm

Nominal Pressure 1.0～4.0MPa

Accuracy ±0.5%；±0.3%

Flow range 0～10m/s(Flow Velocity)

Liner materia PFA

Measuring Electrodes 316L Stainless steel, Harrington alloy B/C, Titanium, Tantalum

Shell material Stainless steel

Medium temperature Remote type-10℃ ~+160℃, Integral type -10℃ ～ +80℃

Connection Mode ISO Standard Quick Connector Main Features:

1) It adopting new sanitary centrifugal liner, that prevent the residue of measured media accumulated in the measuring pipe .

2) It used Fast Connection program and makes the demolition of the electromagnetic flowmeter, maintenance and cleaning to be facilitated.

3)It uses 16 digit embedded Super-Micro power consumption Microprocessor, meanwhile adopts special technical designing excitation system of sensor, having the functions such as higher integration, fast in operational speed, best accuracy in calculation, digital signal processing, strong capability of interference immunity, stable and reliable measurement.

4)The flowmeter is a two-way measurement system with three totalizers: positive total, reverse total and total difference; can display positive and negative flow, and has multiple outputs: current, pulse, digital communication, HART protocol.
