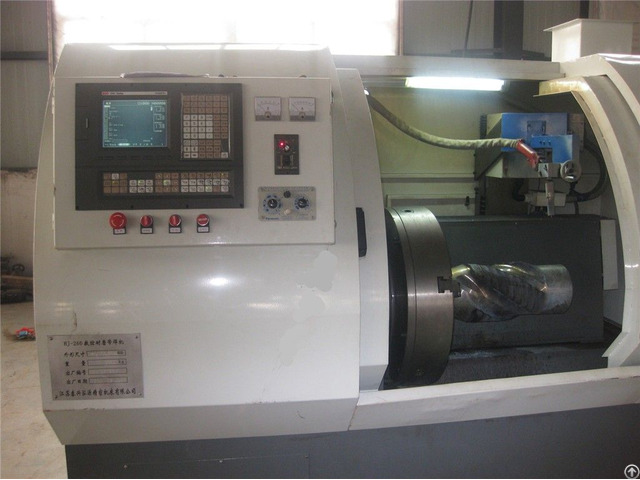

Drilling Stabilizer Hardbanding Machine - China

This machine is 3 axis system, can weld hardface on drilling stabilizer.

Welding spec Can weld hardface on lower than φ260 stabilizer, (It is available for horizontal face, and 14 degree inclined surface, excircle, inclined surface can continues building-up welding) Unit HY-200 HY-260

Spindle center height mm 950 950

Welding length mm 0-200 0～200

Workpiece diameter mm ≤200 ≤260

Spindle number of speeds NO.

无级 无级

Spindle speed r/min 0.2～2 0.2～2

Max.

travel of X-axis mm 320 320

Max.

travel of Z-axis mm 500 500

Noise dB ≤68 ≤68

Wire-feeding wheel interval min 4.5 4.5

Welding wire change interval min 4 4

Wire feeder roller number NO.

2或4 2或4

Welding torch angle adjusting range ° 0～19 0～19

Welding torch swing distance mm 10～35 10～35

Welding torch swing times per minute NO.

/min 50～150 50～150

Machine weight kg 2200 2300

Machine dimension(L×W×H) mm 2400*1600*2000 2400*1600*2000
