Mold Laser Welding Machine 200w 400w - China

price: contact company for price

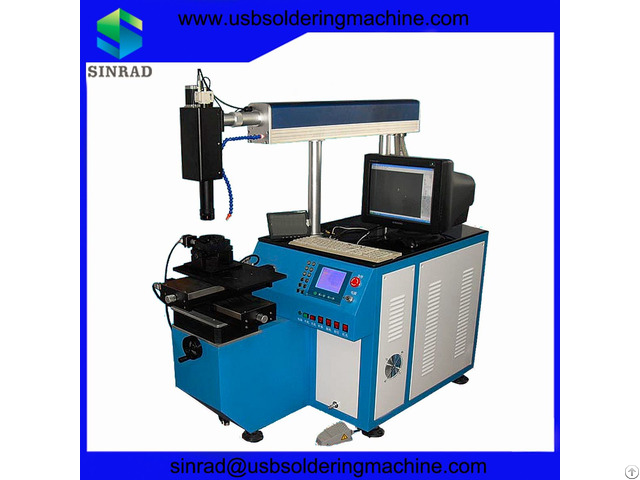

Mold Laser Welding Machine 200w 400w

Products Photos Catalog Mold Laser Welding Photos Catalog

Power: 200W / 400W

Pulse energy: 80J/100J120J

Wavelength: 1064nm

Laser Type: Nd: YAG

Laser Spot Size : 0.2-3mm

Laser Spot Range: 0.1mm-0.3mm

Impulse Width: 0.7-20ms

Impulse Frequency: 0-40HZ

Welding Depth: ≤3mm

Cooling Mode: Water Cooling

Checking System: Microscope or CCD

Protective Gas: Argon

Output Focal Length: 80mm-200mm

Controlling System: PLC Programming

Holistic Power: 5.5KW/6KW

Dimensions: 1600x800x15 00mm

Packing Size: 1800mmx1000x1650mm

Working Area: 300*400mm

Weight: 200kg~300kg

Certification: CE ISO SGS

Warranty : 1 year

After-sales Service: Provided Engineers available to service

Features

Laser control system: Sinrad Laser mold laser spot welder is under the control of double closed loop by inside improved industrial controlling micro-computer so the stability and the running ability surpass products that controlled by monolithic integrated circuit.

The laser controlling system can control the power source profile precisely pre-set optimized.

Gas protecting system: synchronous argon protecting system controlled by micro-computer act better, it make the welding connection even firmer and artistic.

Being controlled to keep synchronous transmission with laser can save the argon at the highest level.

Observing system: It's equipped with special-purpose microscope observing system with cross cursor.

It has high speed electron flitting device to protect the operator's eyes from being hurt.


Company Contact:


  • Phone: 13632812687

  • Address: bao'an , shenzhen , guangdong , China

  • Email: Email


Published date: September 5, 2016 - Modified date: September 5, 2016

  • Business Description: Sinrad Technology Co., Ltd, specialized in automatic machine, automatic soldering machine, automatic wire winding machine, automatic laser welding machine, laser marking machine, laser engraving machines, universal cable/ harness tester, professional laboratory equipment, and other production equipments.
